Engine, Supporting In Installation Position

Special tools and workshop equipment required

• Engine Support Bridge:10-222A
• Engine Support Bridge - Engine Bracket:10-222A/1A
• Engine Support - Bracket w/Spindle and Hook:10-222A/10

Procedure

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

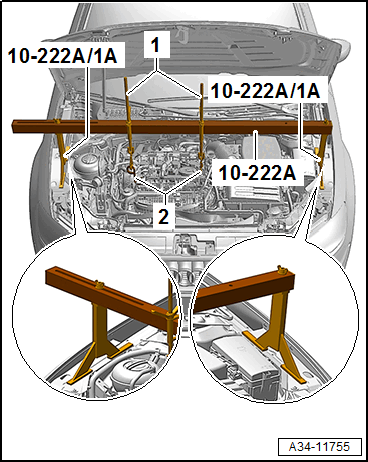

-- Position the :10-222A  with the :10-222A/10  -1- and the :10-222A/1A  as shown on the right and left fender bolting edge.

-- Engage the carabiner hook -2- from the :10-222A/10  -1- on the engine lifting eyes.

-- Slightly pretension the engine/transmission assembly with the spindle, do not lift.

Assembling

Assemble in the reverse order of removal. Note the following:

-- Remove the :10-222A  from the engine.

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
