Ribbed Belt, Removing And Installing: Removing

CAUTION:

Risk of Destroying a Used Ribbed Belt by Reversing the Running Direction.

- Mark the running direction before removal.

- Pay attention to the running direction when reinstalling.

-- Mark the running direction using chalk or a felt-tip pen.

Tensioner Version 1:

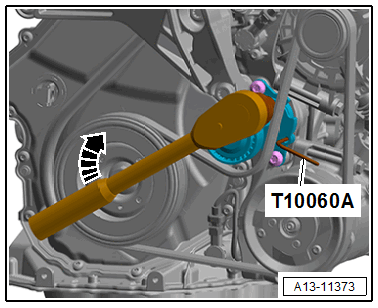

Fig 1: Ribbed Belt For Vehicles With Electro-Mechanical Power Steering

Courtesy of AUDI OF AMERICA, LLC

-- Turn the tensioner clockwise -arrow- to release the tension on the ribbed belt.

-- Secure the tensioner using the : T10060A .

-- Remove the ribbed belt.

Tensioner Version 2:

Courtesy of AUDI OF AMERICA, LLC

-- Turn the tensioner clockwise -arrow- to release the tension on the ribbed belt.

-- Secure the tensioner using the : T10060A .

-- Remove the ribbed belt.
