Overview - Electric Vacuum Pump, Back Of Engine
NOTE:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.

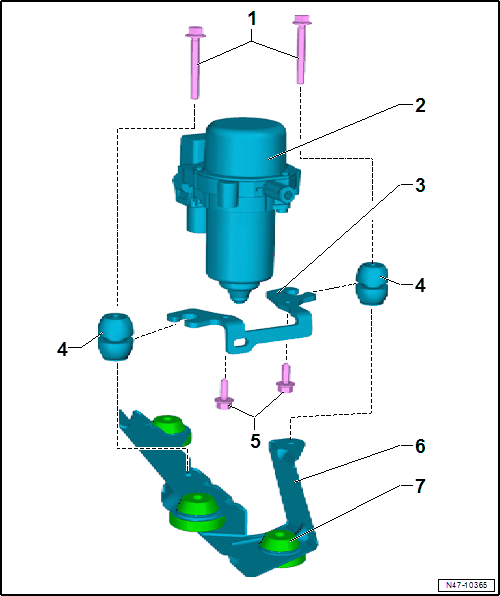

Fig 1: Exploded View Of Brake System Vacuum Pump -V192-, Vehicles With 1.4L Gasoline Engine And Automatic Transmission
- Bolt
- 8 Nm
- Brake System Vacuum Pump -V192-
- Component location: on the back of the engine
- Do not disassemble
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Refer to ELECTRIC VACUUM PUMP, REMOVING AND INSTALLING, BACK OF ENGINE
- Bracket
- Rubber Bushing
- Check for proper seating
- Installation position: the washer points upward
- Bolt
- 8 Nm
- Bracket
- Rubber Bushing
- Check for proper seating
- Do not push out of the bracket when installing
