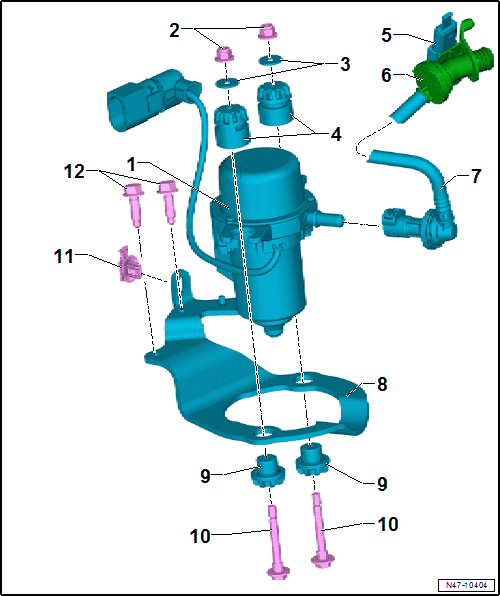

Overview - Electric Vacuum Pump, 1.5L TFSI Gasoline Engine
NOTE:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.
- Brake System Vacuum Pump -V192-
- Component location: in the front right side of the engine compartment
- Do not disassemble
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Nut
- 7 Nm
- Washer
- Rubber Bushing
- Upper
- Vacuum Sensor -G608-
- Allocation. Refer to the Parts Information.
- Refer to Vacuum Sensor -G608-, REMOVING AND INSTALLING
- Check Valve
- Vacuum Line
- Bracket
- Rubber Bushing
- Lower
- Bolt
- Clip
- Connector bracket
- Bolt
- 8 Nm
