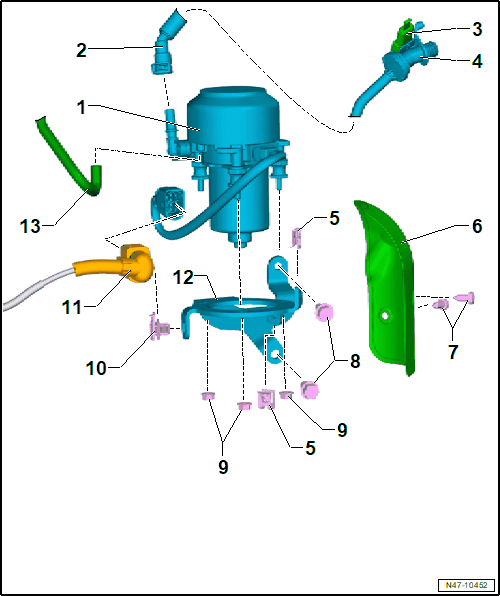

Overview - Electric Vacuum Pump, 1.5L TFSI Engine, G-Tron
NOTE:
Clean the bolts and nuts before reusing.
Always replace self-locking nuts and bolts.
Always replace damaged nuts and bolts.
- Brake System Vacuum Pump -V192-
- Component location. Refer to Fig 2.
- Do not disassemble
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Vacuum Line
- Vacuum Sensor -G608-
- Allocation. Refer to the Parts Information.
- Refer to Vacuum Sensor -G608-, REMOVING AND INSTALLING
- Check Valve
- Locking Plate
- Heat Shield
- Bolt
- 2.5 Nm
- Bolt
- 20 Nm
- Nut
- 7 Nm
- Bracket
- Connector
- Bracket
- Vacuum Hose

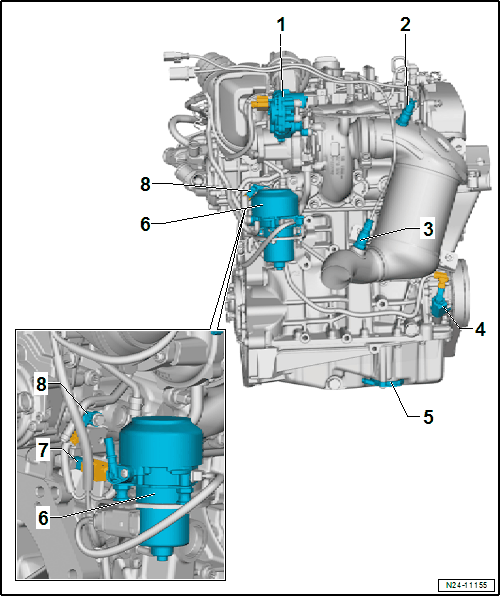

Component Location - Brake System Vacuum Pump v192
- -item 6- on the back of the engine/transmission area
