Overview - Electric Vacuum Pump, 1.0L TFSI Engine

NOTE:

Clean the bolts and nuts before reusing.

Always replace self-locking nuts and bolts.

Always replace damaged nuts and bolts.

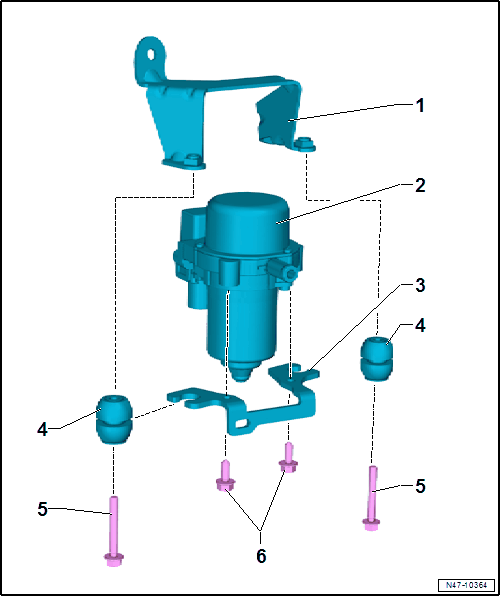

Fig 1: Exploded View Of Electric Vacuum Pump, 1.0L TFSI Engine

Courtesy of AUDI OF AMERICA, LLC

Bracket
- Secured to the engine mount
Brake System Vacuum Pump -V192-
- Component location: in the front right side of the engine compartment
- Do not disassemble
- Check in "Guided Fault Finding" using the Vehicle Diagnostic Tester.
- Refer to ELECTRIC VACUUM PUMP, REMOVING AND INSTALLING, 1.0L TFSI ENGINE
Bracket
Rubber Bushing
- Check for proper seating
- Installation position: the washer points downward
Bolt
- 8 Nm
Bolt
- 8 Nm
