Electric Vacuum Pump, Removing And Installing, 1.5L TFSI Gasoline Engine: Removing

Courtesy of AUDI OF AMERICA, LLC

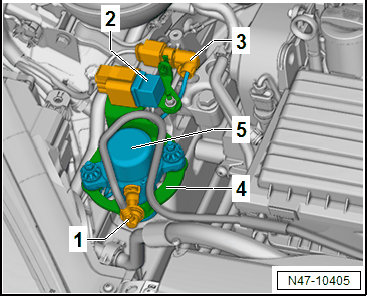

-- Release and disconnect the vacuum hose -1-.

-- If installed, remove the Vacuum Pump Relay -J318- -2- with the bracket and move to the side.

-- Disconnect the connector -3-.

-- Remove the bracket -4- with the Brake System Vacuum Pump -V192-.

-- If necessary, disconnect the vacuum pump from the bracket.
