Electric Vacuum Pump, Removing And Installing, 1.0L TFSI Engine: Removing

Courtesy of AUDI OF AMERICA, LLC

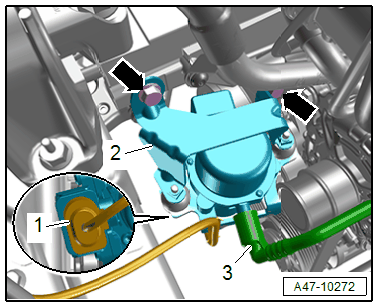

-- Remove the vacuum hose -3-.

-- Disconnect the connector -1-.

-- Remove the screws -arrows-.

-- Remove the bracket -2- with the Brake System Vacuum Pump -V192-.

-- If necessary, disconnect the vacuum pump from the bracket.
