Check Valve, Removing And Installing: Removing

Vehicles with 1.2L/1.4L TFSI Engine

-- Release the retainer -arrow- and remove the vacuum hose -1-.

-- Free up the vacuum hose on the air duct pipe -2-.

Vehicles with 1.5L/1.8L/2.0L TFSI Engine

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

Vehicles with 1.8L/2.0L TFSI engine

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vacuum hose -2-.

-- Press the release button on the vacuum hose -1- and remove the hose from the vacuum pump.

Vehicles with 1.5L TFSI Engine, Gasoline:

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch in direction of -arrow-, remove the vacuum hoses and do not damage.

-- Free up the vacuum hose -1- on the intake manifold and set to the left side.

Vehicles with 1.5L TFSI engine, g-tron:

Courtesy of AUDI OF AMERICA, LLC

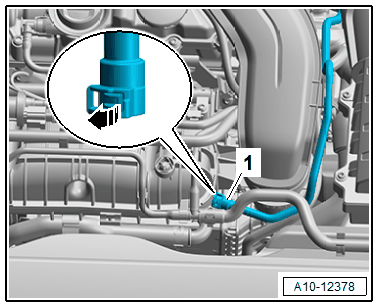

-- Release the catch in direction of -arrow-, remove the vacuum hose -1- and do not damage.

-- Free up vacuum hose.

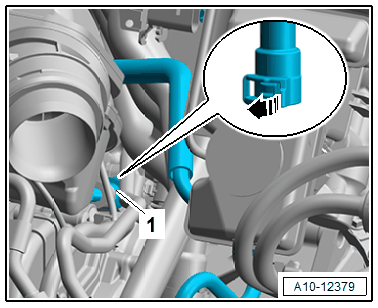

-- Release the catch in direction of -arrow-, remove the vacuum hose -1- and do not damage.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum hose and move to the left side.

Vehicles with 1.6L/2.0L TDI Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Free up the vacuum hoses -arrows-.

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

-- Release the retainer -arrow- and remove the vacuum hose -1-.

Vehicles with 2.5L TFSI Engine

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the vacuum hose -2-.

-- Free up the vacuum hose -1-, pull it out of the brake booster vacuum pump and remove it.

Continuation for All Engines:

Courtesy of AUDI OF AMERICA, LLC

-- If installed, disconnect the connector -1- from the Vacuum Sensor -G608-.

-- Carefully remove the vacuum hose -2- from the brake booster.
