Overview - Luggage Compartment Side Trim Panel

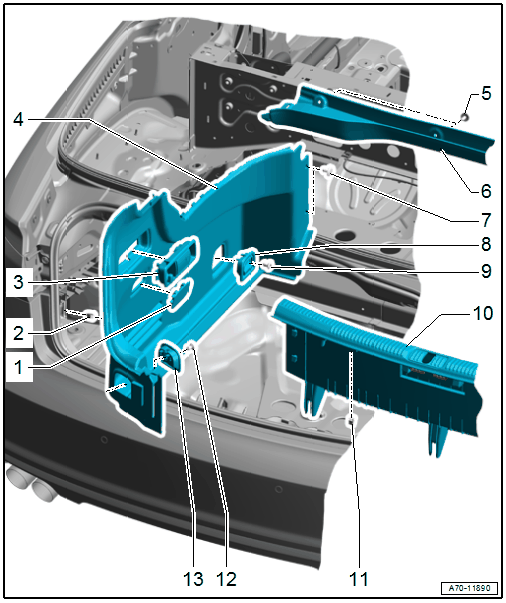

Fig 1: Exploded View Of Luggage Compartment Side Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • Clipped in the side trim
2. Clip
   • Insert in the trim panel
   • Remove any remaining clips using Omega Clip Tool:T40280  and use them to install the trim.
   • Replace damaged or deformed clips
3. Rear Backrest Release
   • Removing and Installing. Refer to RELEASE CABLE, REMOVING AND INSTALLING .
4. Luggage Compartment Side Trim Panel
   • Allocation. Refer to the Parts Information.
   • Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
   • Press on until it engages audibly
   • Stretch the lip of the rear lid seal over
5. Expanding Clip
   • Quantity: 4
6. Upper Luggage Compartment Trim Panel
   • Removing and Installing. Refer to UPPER LUGGAGE COMPARTMENT TRIM PANEL, REMOVING AND INSTALLING .
   • Press on until it engages audibly
   • Stretch the lip of the rear lid seal over
7. Expanding Clip
   • Quantity: 2
8. Tie Down
   • Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
9. Bolt
   • 9 Nm
10. Lock Carrier Trim Panel
    • Removing and Installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
    • Must engage in the pins and in the luggage compartment side trim panel.
    • Press on until it engages audibly
    • Stretch the lip of the rear lid seal over
11. Clip
    • Quantity: 4
    • Insert in the trim panel
    • Remove clips left in the body using the Omega Clip Tool:T40280  and use them for installing the trim panel.
    • Replace damaged or deformed clips
12. Bolt
    • 9 Nm
13. Tie Down
    • Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
