Dimensions - Side Name Badges And Emblems

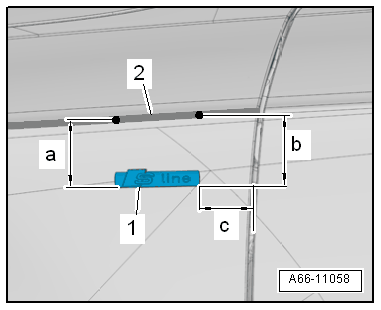

GWWA66-11058

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 75 mm.
Dimension -b- = 78 mm.
Dimension -c- = 33 mm.

-1- >>S line<< emblem.

-2- Cover edge in fender.
