Dimensions - Rear Name Badges And Emblems

Courtesy of AUDI OF AMERICA, LLC

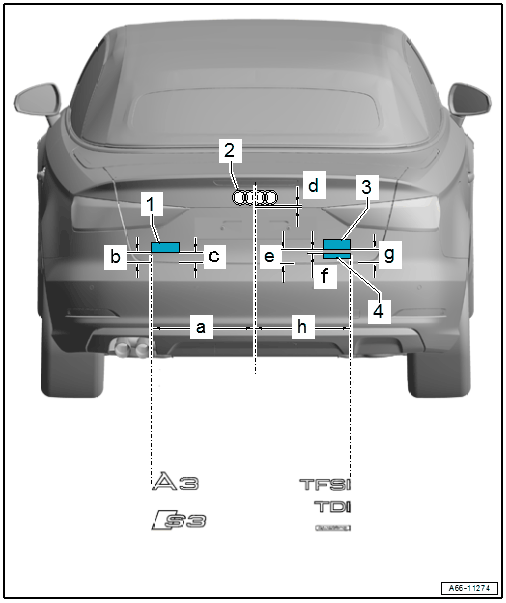

Left Emblem

-1- Emblem.

• Dimension -a- = 461 mm.
• Dimension -b- = 45 mm.
• Dimension -c- = 46 mm.

Center Emblem

-2- Audi rings.

Dimension -d- = 12 mm.

Right Emblem

-3- Engine versions.

-4- "quattro" name badge.

• Dimension -e- = 46 mm.
• Dimension -f- = 4 mm.
• Dimension -g- = 45 mm.
• Dimension -h- = 461 mm.
