Overview - Side Sill Trim Panel

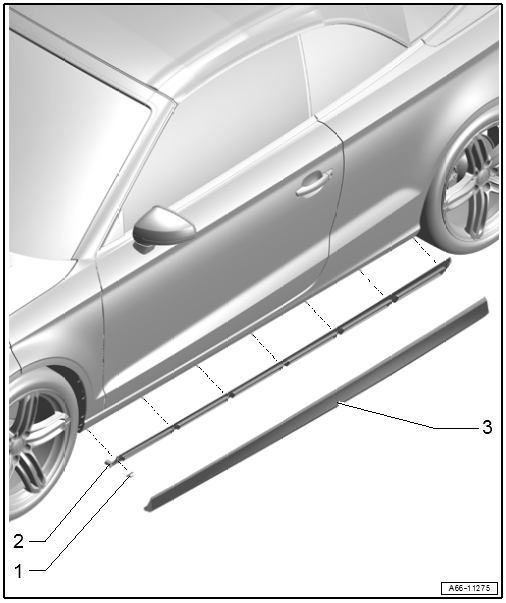

Fig 1: Exploded View Of Side Sill Trim Panel

GWWA66-11275

Courtesy of AUDI OF AMERICA, LLC

Nut
- 2 Nm
- Quantity: 7
Mount
- For the side sill trim panel
- Removing and Installing. Refer to SIDE SILL TRIM PANEL MOUNT, REMOVING AND INSTALLING .
Side Sill Trim Panel
- Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING .
