Overview - A-Pillar Trim

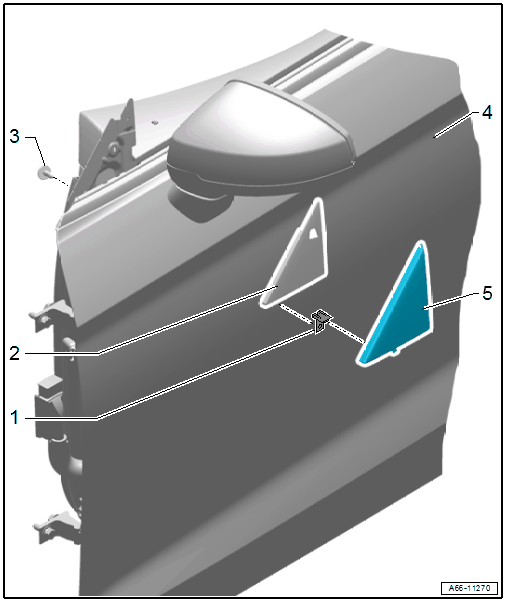

Fig 1: A-Pillar Trim
GWWA66-11270Courtesy of AUDI OF AMERICA, LLC
  1. Clip Nut
  2. Seal
    • For the A-pillar trim
  3. Bolt
    • 2.5 Nm
  4. Door
  5. A-Pillar Trim
