Impact Member, Removing And Installing: Installing: Notes

Install in reverse order of removal and Note The Following:

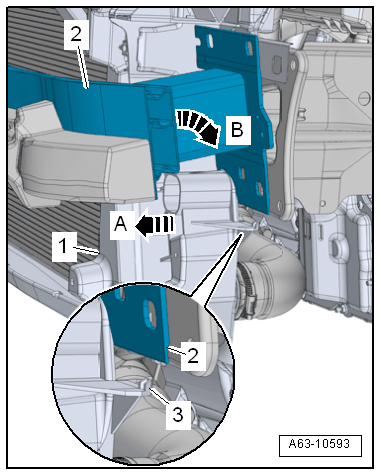

-- Pull the lock carrier -1- forward -arrow A-, insert the impact member -2- -arrow B- and set it in its installation position.

Courtesy of AUDI OF AMERICA, LLC

• The impact member must be guided behind the guide -3- on the lock carrier while doing so.
