Fender, Removing And Installing

Special tools and workshop equipment required

• Trim Removal Wedge: 3409

Removing

-- Open the front door.

-- Push aside the end plate -1- in the upper area using the : 3409  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

-- RS3: Remove the windshield washer fluid reservoir. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

-- If equipped remove the damper for the fender.

-- Remove the bolts -2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sealing piece. Refer to SEALING PIECE, REMOVING AND INSTALLING .

-- Remove the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- RS3: Slide the fender -1- towards the A-pillar in direction of -arrow- and remove upward out of the retaining tab -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fender.

Fender, Preparing for Installation

Special tools and workshop equipment required

• Pop Rivet Nut Pliers: VAS5072A
• Drill
• Pop rivets. Refer to the Parts Information.

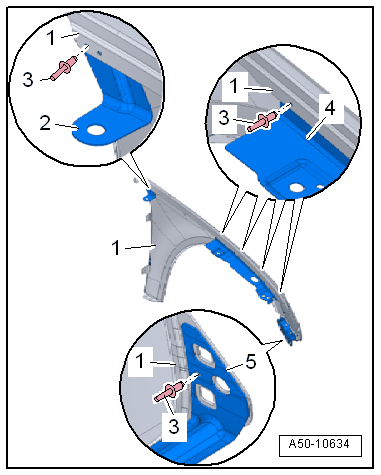

-- Rivet the brackets -2 and 4- and the reinforcement -5- (not for Sedan) to the fender -1- with the pop rivets -3-.

Courtesy of AUDI OF AMERICA, LLC

• The brackets must be behind the fender edge.

Installing

Install in reverse order of removal and note the following:

-- Insert the seal -2- in the area of the center bolt in the fender -1-.

Tightening Specifications

• Refer to OVERVIEW - FENDER .
