Cover And Cushion, Removing And Installing: Removing

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the cover for the child seat anchor. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, REAR SEAT BACKREST .

-- Remove the locking bracket cover. Refer to REAR SEAT BACKREST LOCKING BRACKET, REMOVING AND INSTALLING .

-- Open the clamping strip -1- for the cover.

GWWA74-10525Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cover clips from the backrest shell at the corners -arrows- using the : 80 - 200  .

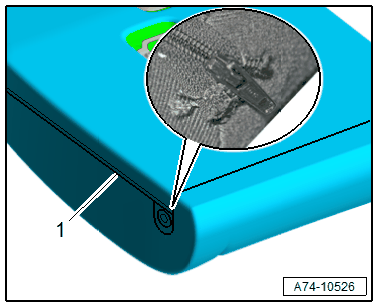

-- Open the zipper -1- for the cover on both sides.

GWWA74-10526Courtesy of AUDI OF AMERICA, LLC

-- Starting at the bottom, carefully loosen the cushion from the backrest shell adhesive strips.

-- Carefully disengage the cover and cushion from the headrest guides and remove.
