Input Shaft, Removing And Installing: Installing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2016 Audi A4, 2015 Audi A4, 2014 Audi A4, 2013 Audi A4, and 2012 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

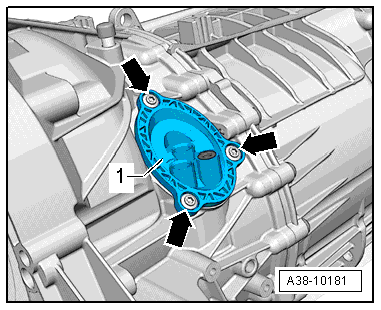

Fig 1: Identifying Bolts From ATF Filter

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Check wear on transmission components, refer to INPUT SHAFT, CHECKING FOR WEAR .

-- Remove the bolts -arrows- and pull the Automatic Transmission Fluid (ATF) filter out of the transmission housing.

-- Clean the sealing surfaces on the transmission housing and on the input shaft cover.

-- Adjust and install the reverse gear clutch. Refer to REVERSE GEAR CLUTCH, REMOVING AND INSTALLING, SELECTING ADJUSTING DISCS .

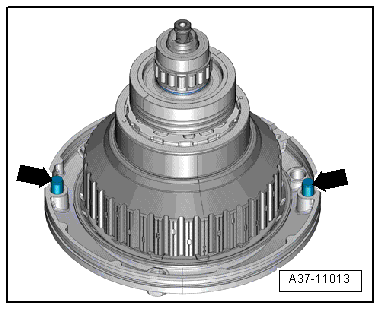

-- Make sure the alignment sleeves -arrows- are on the input shaft cover and that they are secure.

Fig 2: Ensuring Alignment Sleeves -Arrows- On Input Shaft Cover

Courtesy of AUDI OF AMERICA, LLC

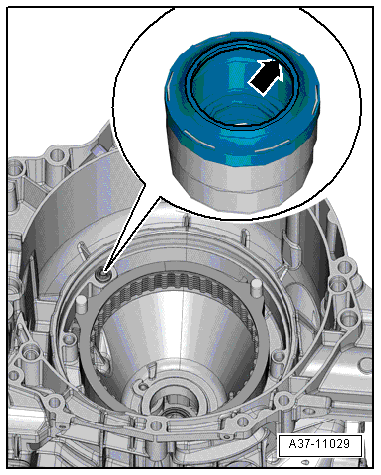

-- Replace the axial sealing element (seal) -arrow-.

Fig 3: Replace Axial Sealing Element (Seal)

Courtesy of AUDI OF AMERICA, LLC

Installed position: The sealing lip faces upward toward the input shaft cover.

-- Replace the O-ring on the input shaft cover and coat it with Automatic Transmission Fluid (ATF).

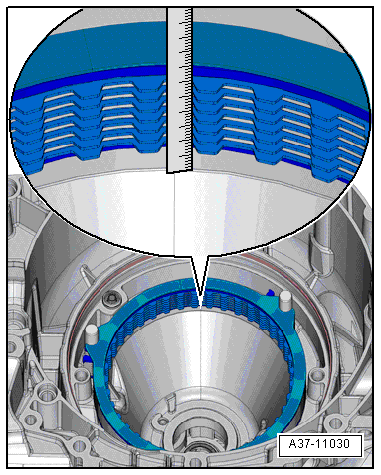

-- Adjust the clutch discs of the reverse clutch, for example, with a straight-edge.

Fig 4: Adjust Clutch Discs Of Reverse Clutch

Courtesy of AUDI OF AMERICA, LLC

The grooves must stand exactly in row.

-- Check the installed dimension for the oil pipe -arrow- :

Fig 5: Check Installed Dimension For Oil Pipe

Courtesy of AUDI OF AMERICA, LLC

The distance from the end of the oil pipe up to the input shaft is approximately 11.5 mm -a- when the oil pipe is inserted all the way.

NOTE:

If the dimension is smaller, the oil pipe possibly is damaged as it was pushed in too far and is broken at the end.

If the dimension is larger, it is not pushed in far enough.

CAUTION:

If the oil pipe is damaged, starting problems or a transmission malfunction will result.

The input shaft may not be placed on the protruding oil pipe -arrow-.

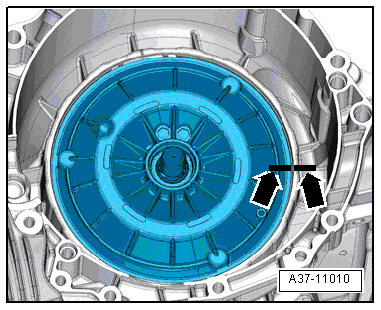

-- Insert the input shaft and cover into the transmission housing and align it with the markings -arrows- made earlier during removal.

Fig 6: Insert Input Shaft And Cover Into Transmission Housing And Align It With Markings -Arrows- Made Earlier During Removal

Courtesy of AUDI OF AMERICA, LLC

-- Move the input shaft back and forth until all splines engage in the reverse gear clutch.

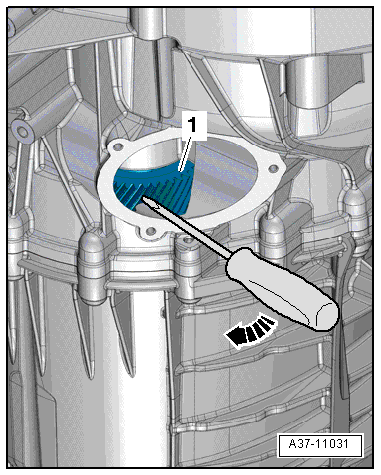

-- Insert a screwdriver -arrow- through the opening in the housing for the Automatic Transmission Fluid (ATF) filter and turn the toothed gear -1- until it engages with the toothed gear on the input shaft.

Fig 7: Insert A Screwdriver -Arrow- Through Opening In Housing For ATF Filter And Turn Toothed Gear -1- Until It Engages With Toothed Gear On Input Shaft

Courtesy of AUDI OF AMERICA, LLC

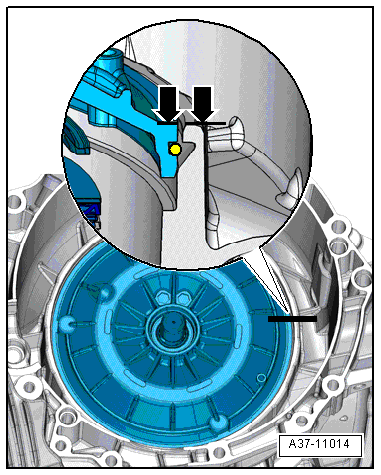

-- Make sure the input shaft cover is flush with the transmission housing.

Fig 8: Ensuring Input Shaft Cover Is Flush With Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

-- Only when both parts are flush, then install the input shaft cover by placing a piece of wood on the cover, then carefully hit the wood evenly with a rubber hammer until the cover is all the way.

NOTE:

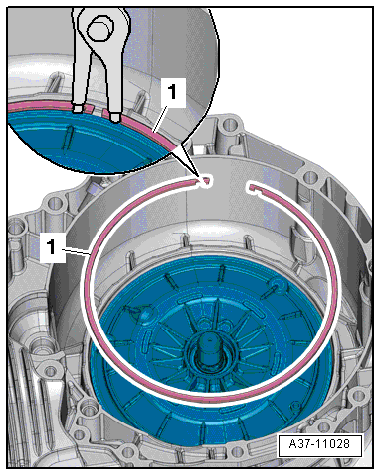

Use a new locking ring -1- with the same thickness as the locking ring used before if the same input shaft cover and the same transmission housing are going to be installed.

Fig 9: Identifying Circlip

Courtesy of AUDI OF AMERICA, LLC

It is necessary to determine the locking ring thickness only if a new input shaft cover and/or new transmission housing is being installed.
