INSTALL REAR BUMPER ASSEMBLY
1. Engage the 2 claws as shown in the illustration.

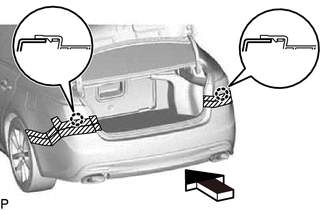

  Fig 1: Identifying Rear Bumper Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 6 claws.

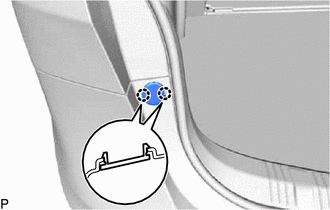

  Fig 2: Identifying Rear Bumper Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the RH side and LH side.
3. Install the 2 clips.
4. Install the 6 screws.
5. Install the screw.
  HINT:

  Use the same procedure for the RH side and LH side.
6. Install the rear bumper assembly with the 2 bolts.
INSTALL REAR BUMPER PLATE LH
1. Engage the 2 claws to install the rear bumper plate LH.

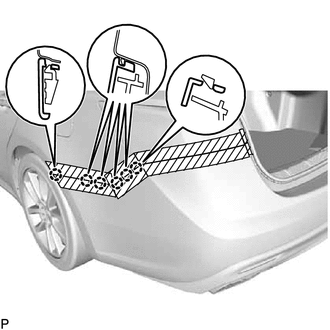

  Fig 3: Identifying Rear Bumper Plate LH Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER PLATE RH
HINT:

Use the same procedure as for the LH side.
