Installation [10/2013 - ]

WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.

INSTALL FRONT FENDER OUTSIDE MOLDING
1. Engage the 4 guides to install a new front fender outside molding as shown in the illustration.

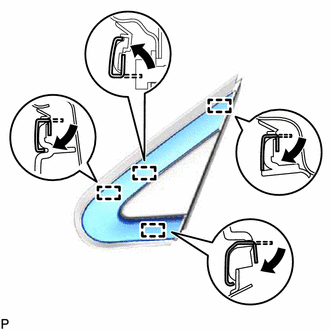

  Fig 1: Identifying Front Fender Outside Molding Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY
1. Install a new clip to the front pillar upper cover sub-assembly.
2. Install a new gasket to the front pillar upper cover sub-assembly.
3. Engage the clip and claw to install the front pillar upper cover sub-assembly.
