Components [10/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

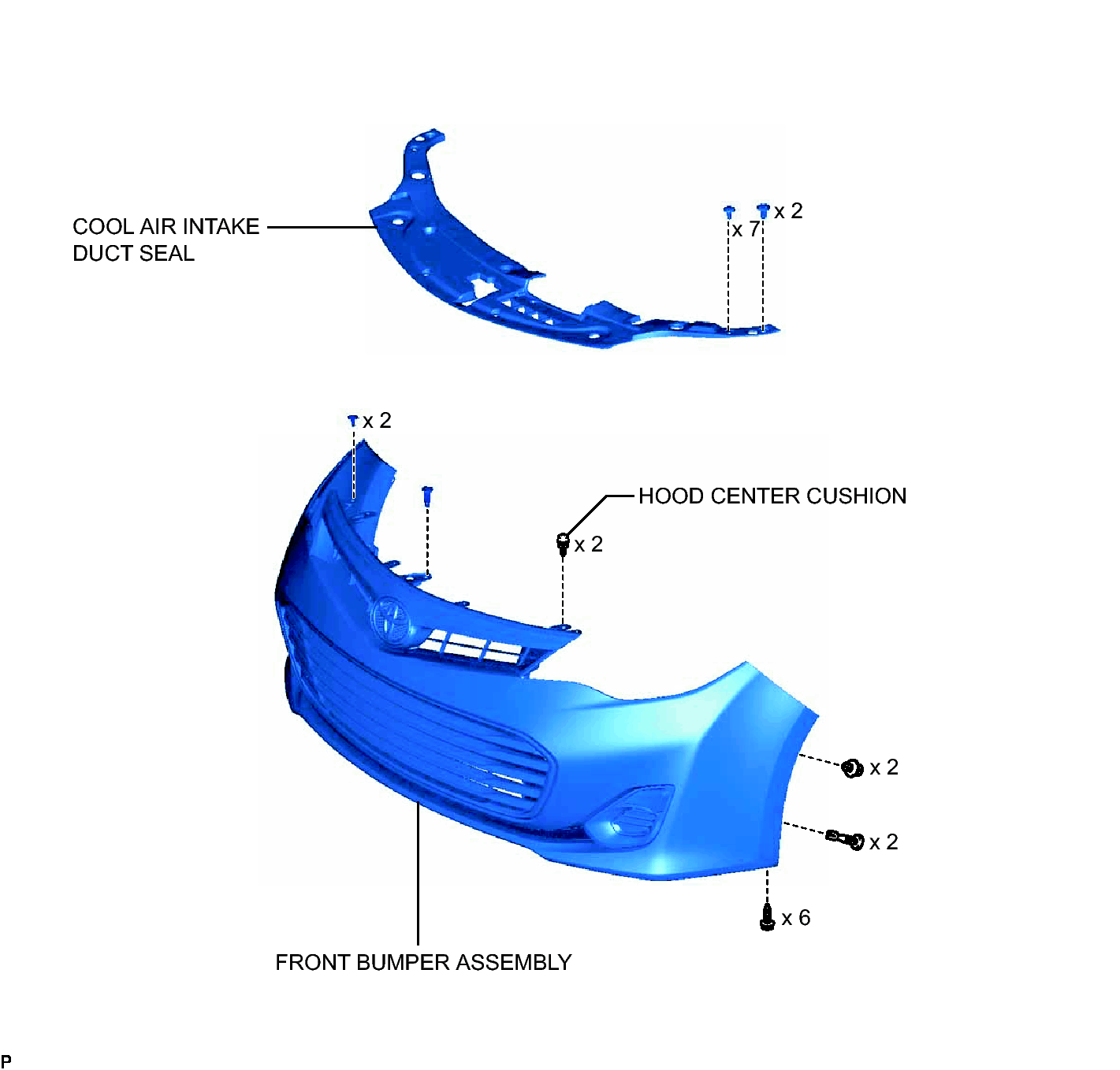

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (1 Of 4)
GTY366497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

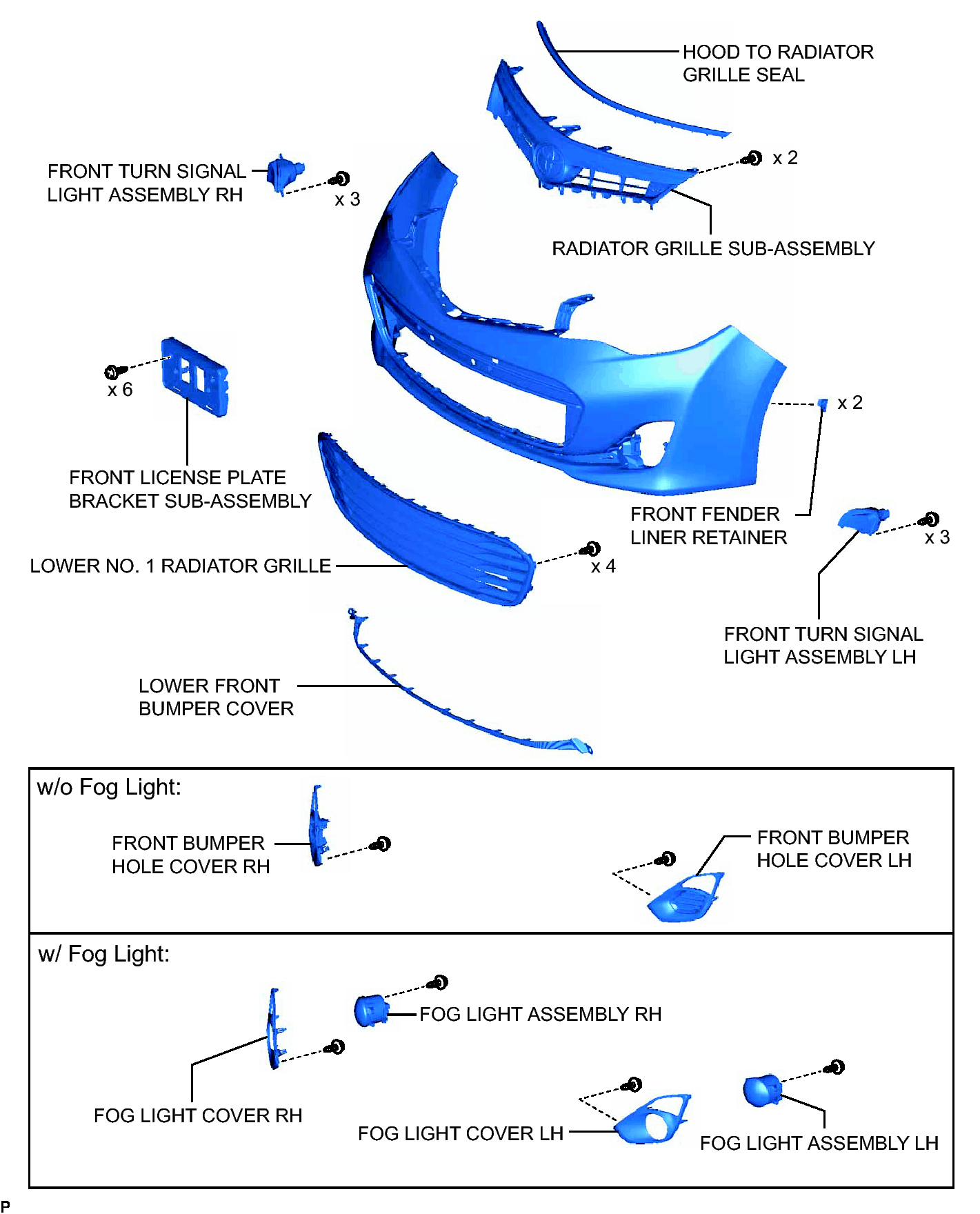

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (2 Of 4)
GTY361385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

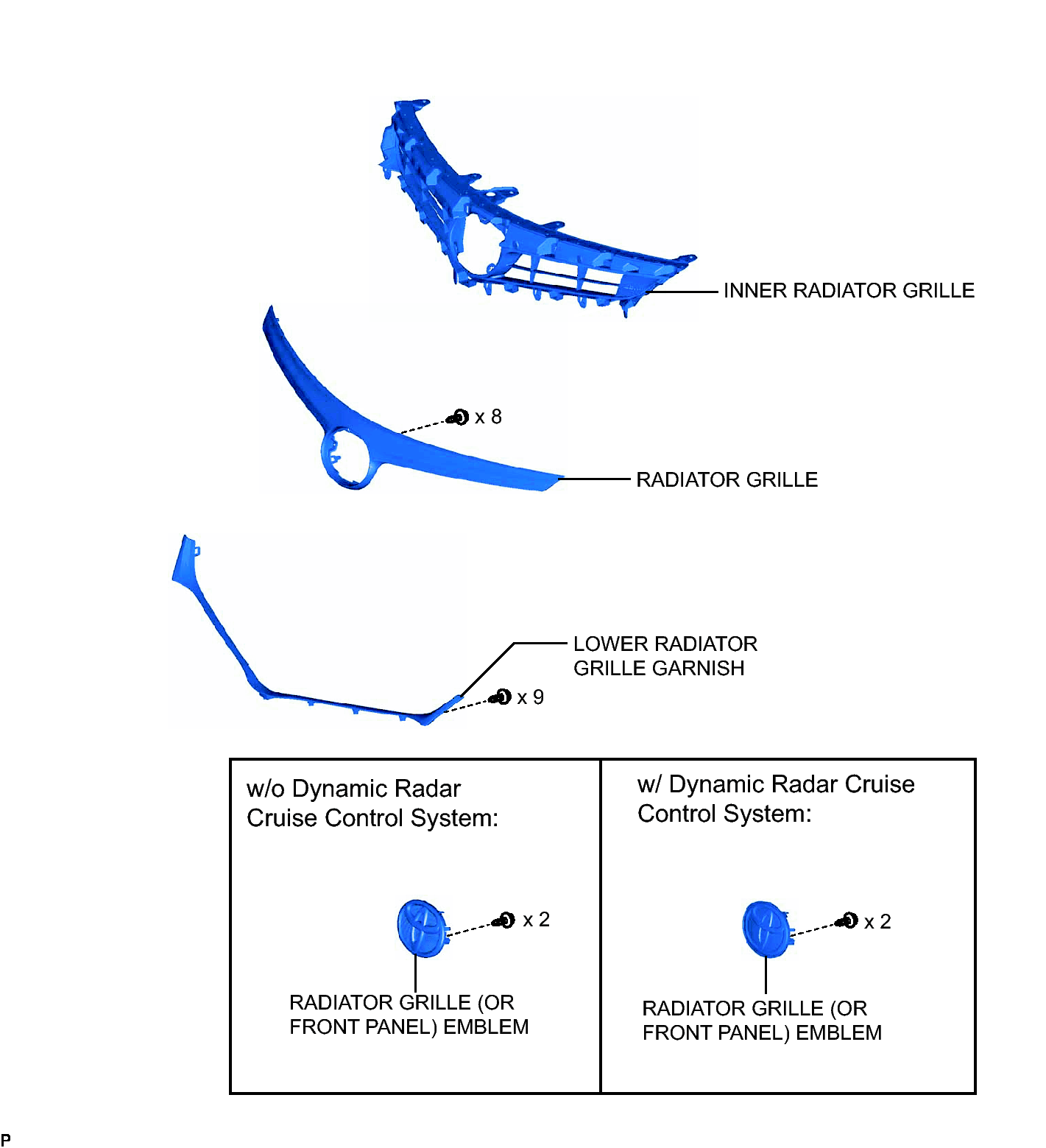

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (3 Of 4)
GTY362551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

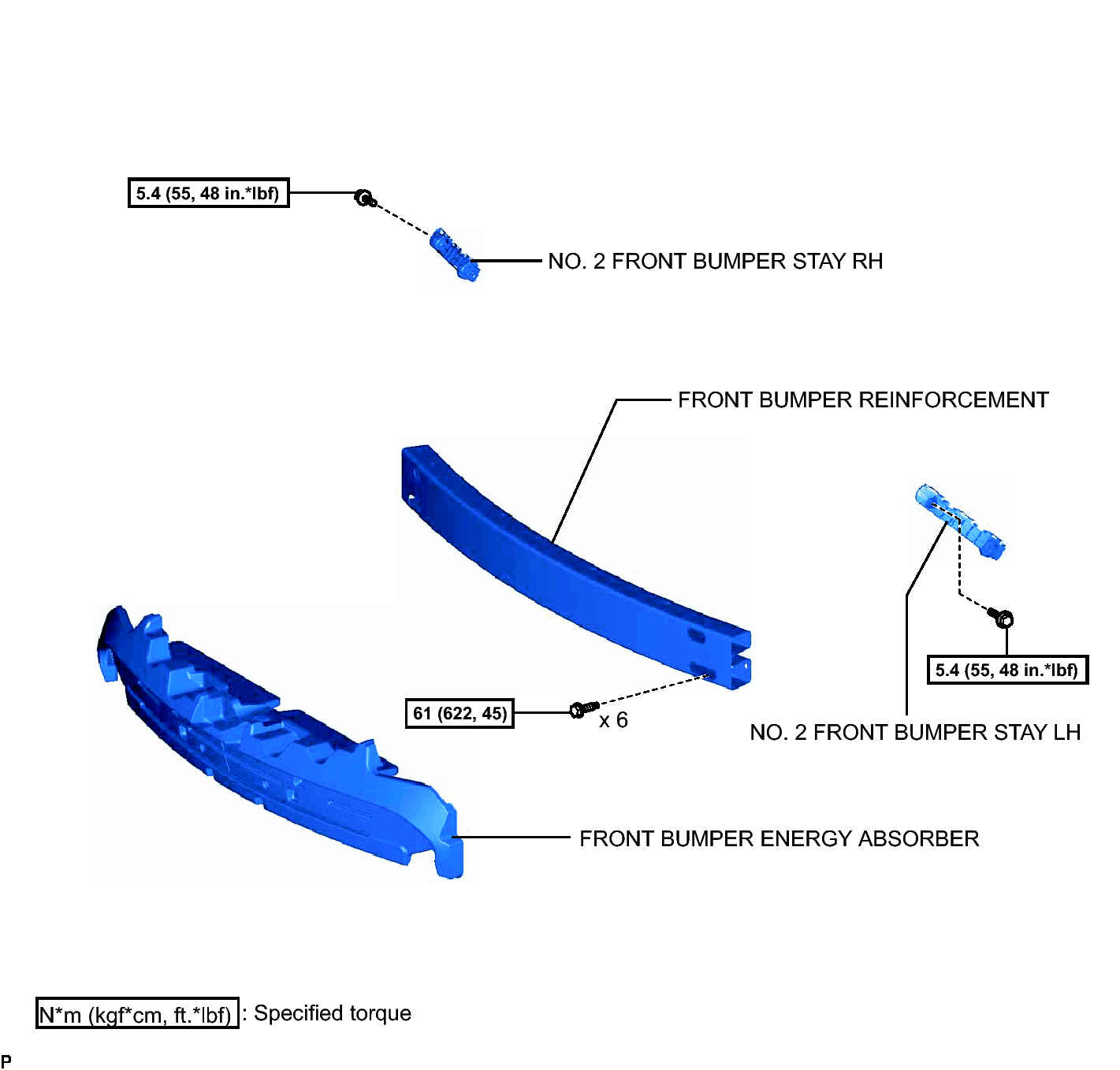

Fig 1: Identifying Front Bumper Replacement Components With Torque Specifications (4 Of 4)
GTY373443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
