Drive Axle Heat Shield, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi S3, 2017 Audi A3 Quattro, 2017 Audi A3, 2016 Audi S3, and 2016 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Front Wheel Drive

Fig 1: Locating Drive Axle Heat Shield
GWWA40-10460Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Bolts -1- 25 Nm

Automatic Transmission - Front Wheel Drive

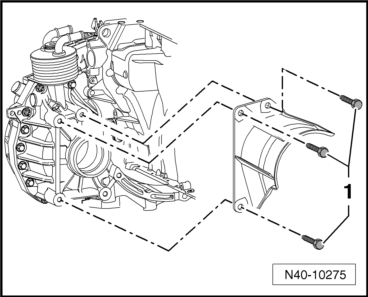

Fig 2: FWD 09M Automatic Transmission
GWWN40-10275Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Bolts -1- 40 Nm

All Wheel Drive (AWD):

Fig 3: Drive Axle Heat Shield -- All Wheel Drive
GWWN40-10250Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Nuts -1- 20 Nm
  • Tighten all nuts to 10 Nm
