Tail Lamp, Removing And Installing: Installing
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install In Reverse Order Of Removal.
Install In Reverse Order Of Removal.
Install In The Reverse Order Of Removal. Note The Following:

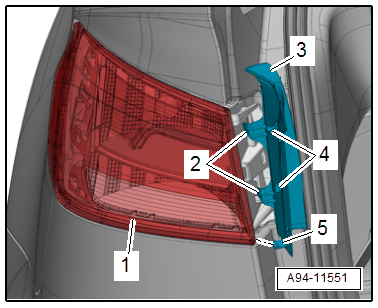

-- Position the tail lamp -1- on the body and push the bolt into the clip nut.
-- Insert the centering pin -2- and the tabs -4 and 5- on the cover -3- into the mount and onto the tail lamp assembly.
-- Push the cover onto the tail lamp assembly.
- The tabs must audibly engage in the tail lamp assembly.
