Rear Lid Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch to position "0".
-- Insert a small screwdriver into the opening -arrow A- and remove the cover -1- in the direction of -arrow B-.

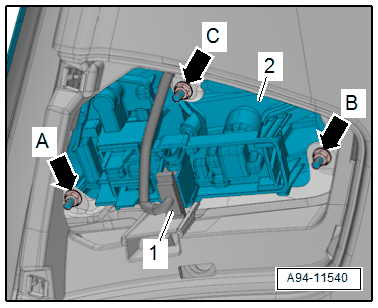

-- Disconnect the connector -1-.
-- Remove the nuts -arrows A, B and C-.
-- Remove the rear lid tail lamp -2- toward the outside.
-- Turn the light switch to position "0".

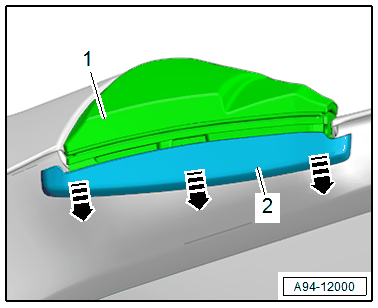

-- Vehicles from MY 2017: pry out the cover -2- from the tail lamp -1- downward in the direction of -arrows-.
-- Release the cover -1- from the clip in direction of -arrow- using the :3409 .

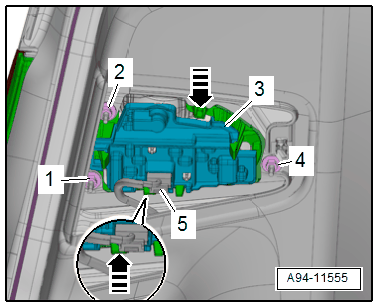

-- Pull the locking mechanism and disconnect the connector -5-.
-- Remove the nuts -1, 2 and 4-.
-- Release the retainers in direction of -arrows- and remove the rear lid tail lamp -3- toward the outside.
