Overview - High-Mounted Brake Lamp
WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- High-Mounted Brake Lamp, Sedan
- High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to HIGH-MOUNTED BRAKE LAMP BULB -M25-, REMOVING AND INSTALLING .
- High-Mounted Brake Lamp, e-tron®
- High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to HIGH-MOUNTED BRAKE LAMP BULB -M25-, REMOVING AND INSTALLING .
- Spring Nut
- Bolt
- 2.5 Nm
- Spring Nut
- Bolt
- 2.5 Nm

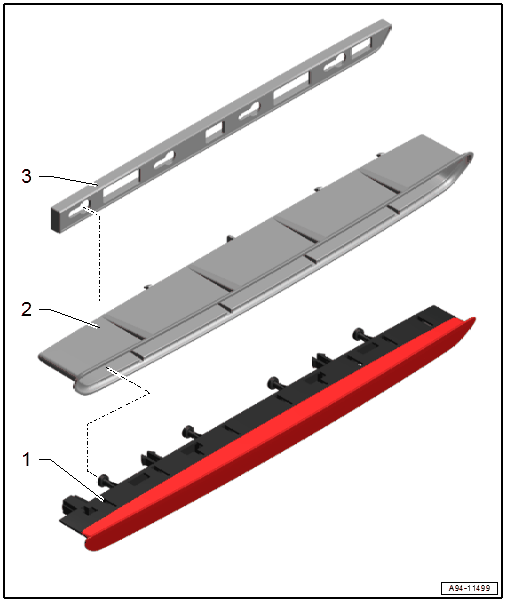

- High-Mounted Brake Lamp
- High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to HIGH-MOUNTED BRAKE LAMP BULB -M25-, REMOVING AND INSTALLING .
- Mount
- For High-Mounted Brake Lamp Bulb -M25-
- Retaining Rail
