Part I: Notes

Part II.  Refer to PART II .

Part III.  Refer to PART III .

Fig 1: Exploded View Of Turbocharger, Part I

Courtesy of AUDI OF AMERICA, LLC

1. O-ring
   • Always replace after removing.
   • Coat with engine oil
2. Bolt
   • 9 Nm
3. Coolant Supply Line
4. O-ring
   • Always replace after removing.
   • Coat with coolant
5. Seal
   • Always replace after removing.
6. Nut
   • Always replace after removing.
   • Coat the stud bolts with hot bolt paste. Refer to Parts Catalog for the hot bolt paste.

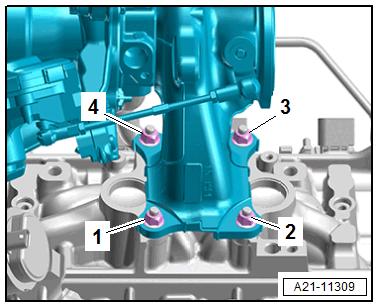

   • Tightening specification and sequence. Refer toFigure.
7. Turbocharger
   • Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
8. Oil Supply Line
9. Heat Shield
10. Bolt
    • 9 Nm
11. Nut
    • 9 Nm
12. Bolt
    • 9 Nm
13. O-ring
    • Always replace after removing.
    • Coat with engine oil
14. Bolt
    • 9 Nm
15. Bolt
    • 9 Nm
16. Connection
17. O-ring
    • Always replace after removing.
18. Bolt
    • 9 Nm
