Selector Lever Transmission Range Position Display Unit -Y26-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Press the button on the electro-mechanical parking brake to activate it.
-- Move the selector lever into "D/S".
-- Turn off the ignition.

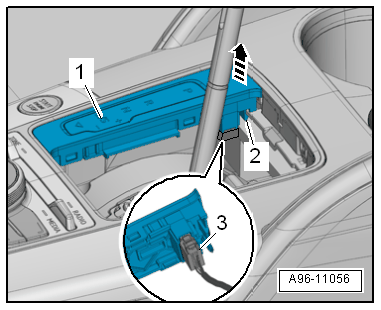

-- Carefully pry out the selector lever boot with the :T10383/1 on both sides in direction of -arrows- and then fold it upward.
-- Release the spring -2-, and remove the Selector Lever Transmission Range Position Display Unit -Y26- -1- upward in direction of -arrow-.
-- Disconnect the connector -3-.
