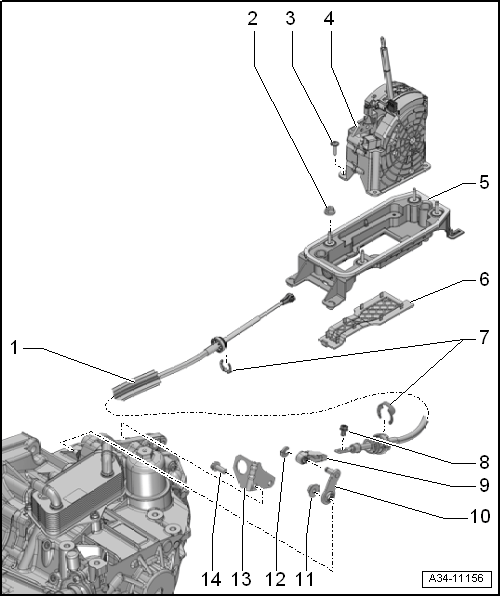

Overview - Selector Mechanism
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Selector Lever Cable
- Nut
- 8 Nm
- For selector mechanism to body
- Quantity: 4
- Bolt
- 4 Nm
- For attaching the selector mechanism to the selector housing
- Quantity: 4
- Selector Mechanism Function Unit
- With a permanent circuit board for the selector mechanism (Selector Lever -E313-)
- With integrated Selector Lever -E313- with Selector Lever Sensor System Control Module -J587-, Selector Lever Park Position Lock Switch -F319- and Shift Lock Solenoid -N110-
- Checking Vehicle Diagnostic Tester, Guided Fault Finding
- Selector Lever -E313- with elector Lever Sensor System Control Module -J587-, Selector Lever Park Position Lock Switch -F319- and Magnet for Shift Lock Solenoid -N110- can be replaced with the shift mechanism function unit only. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING
- Selector lever cable can only be replaced with the selector mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Perform selector mechanism emergency release. Refer to EMERGENCY RELEASE FROM P .
- Removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
- Do not lubricate the selector lever cable
- Selector Housing
- Base Plate
- Always replace after removing
- Clips
- Always replace after removing
- Bolt
- 13 Nm
- Selector lever cable adjusting screw
- Joint Piece
- Selector Lever
- Nut
- 20 Nm
- Lock Washer
- Cable Mounting Bracket
- For selector lever cable
- Bolt
- 15 Nm
