Overview - Selector Lever Handle

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

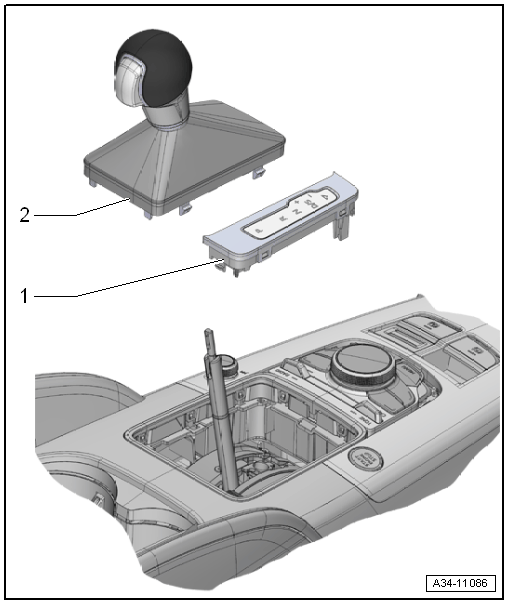

Fig 1: Selector Lever Handle Exploded View

Courtesy of AUDI OF AMERICA, LLC

Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and installing. Refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING
Selector Lever Handle
- With selector lever boot
- Removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING
- Selector Lever Handle Locking Button, Bringing into Installation Position. Refer to SELECTOR LEVER HANDLE LOCKING BUTTON, BRINGING INTO INSTALLATION POSITION .
