5. Connectors On Selector Mechanism, Checking
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Before inspection of the connections, check all control devices in the vehicle for entries on their event log Vehicle Diagnostic Tester, Guided Fault Finding . If applicable, correct any faults.
-- Checking the connections. Refer to the Appropriate Systems Wiring Diagram.

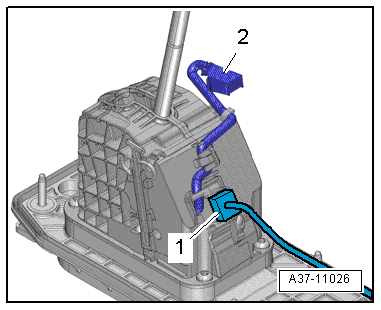

- Electrical connector for connections from the function unit of the switch mechanism to the transmission (with CAN lines) and to the Shift Lock Solenoid -N110- and Selector Lever Park Position Lock Switch -E319-.
- Connector for Selector Lever Transmission Range Position Display Unit -Y26-.
