Overview - MECHATRONIC
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

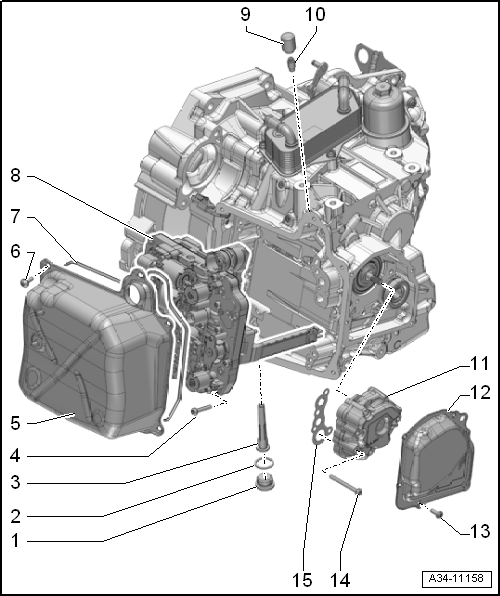

- Drain and Check Plug
- 45 Nm
- Seal
- Always replace after removing
- Overflow Pipe
- 3 Nm
- Bolt
- Tightening specification and sequence. Refer to the appropriate service information.
- Always replace after removing
- Quantity: 10
- Oil Pan
- Removing and installing. Refer to OIL PAN, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to the appropriate service information.
- Always replace after removing
- Quantity: 5
- Gasket
- Always replace after removing
- DSG Transmission Mechatronic -J743-
- With O-rings on connector
- Always replace the O-ring after disassembly.
- Removing and installing. Refer to Direct Transmission Mechatronic -J743-, REMOVING AND INSTALLING
- Bleed Cap
- Placed on bleed pipe
- Bleed Pipe
- Pressed into transmission
- Always replace after removing
- Transmission Oil Pump
- Removing and installing. Refer to TRANSMISSION FLUID PUMP, REMOVING AND INSTALLING .
- Insert with new seal
- Transmission Oil Pump Cover
- With seal
- Always replace after removing
- Removing and installing. Refer to TRANSMISSION FLUID PUMP, REMOVING AND INSTALLING
- Bolt
- Tightening specification and sequence. Refer to the appropriate service information.
- Always replace after removing
- Quantity: 4
- Bolt
- Tightening specification and sequence. Refer to the appropriate service information.
- Always replace after removing
- Quantity: 4
- Different versions.
- Gasket
- Always replace after removing
-- Tighten the screws -arrows- diagonally in steps to 16 Nm.
NOTE:
Replace the bolts that were tightened with an additional turn.
-- Tighten the bolts in steps in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 10- | 5 Nm |
| 2. | -1 to 10- | Tighten 90° further |
-- Tighten the screws -arrows- diagonally in steps to 8 Nm.
NOTE:
Replace the bolts.
NOTE:
Replace the bolts that were tightened with an additional turn.
-- Tighten the bolts in steps as follows:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | Upper countersink bolt | 8 Nm with Wrench - Pump/Injector Long Reach :T10054 |
| 2. | Flat head screws | 8 Nm |
| 3. | Flat head screws | Tighten 90° further |
