Spring, Removing And Installing, Torsion Beam Axle: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the wheel. Refer to WHEEL, CHANGING AND MOUNTING .

-- Remove the clip -1- in the direction of the -arrow- until stop.

GWWN42-10588Courtesy of AUDI OF AMERICA, LLC

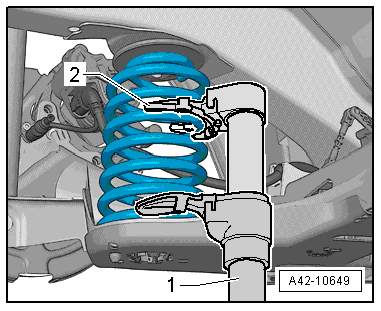

-- Install the spring tensioner -1-.

GWWA42-10649Courtesy of AUDI OF AMERICA, LLC
NOTE:

On vehicles with heavy duty suspension a spring coil must be tensioned more then on a standard suspension. Refer to EXPLANATIONS OF PRODUCTION CONTROL NUMBERS (PR NUMBER) . That is only possible when the upper spring compressor spring retainer is removed. Then both spring retainers are placed on the spring and then the upper spring retainer is reinstalled on the spring compressor.

WARNING:

Make sure that coil spring is seated correctly in the :VAG1752/3A  -2- (danger of accident).

-- Tension the coil spring and remove it.

NOTE:

Use a wrench or a reversible ratchet to tighten the spring compressor.

  1. :VAG1752/3A
  2. :VAG1752/9
  3. :VAG1752/1
