Transmission Identification
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2017 Audi S3, 2017 Audi A3 Quattro, 2016 Audi S3, 2016 Audi A3 Quattro, and 2016 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

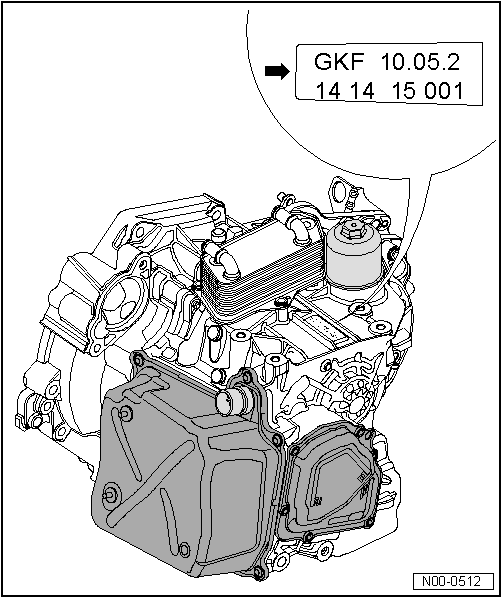

The following specifications can be found on top of the transmission (example):
- GKF = Transmission code
- 10.05.2 = Production date 05/10/2002.
- 14 14 15 = Manufacturer identification
- 001 = Serial number
- Depending on the version, the code is also on top of the transmission near the selector lever cable -arrows-.
- The transmission codes are also on the vehicle data labels.
- Vehicle data label locations:
- Audi A3. Refer to appropriate service information.
- Audi TT. Refer to appropriate service information.
- Audi Q2. Refer to appropriate service information.
