Rear Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

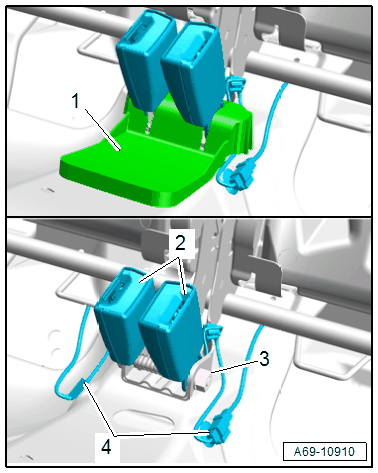

GWWA69-10910Courtesy of AUDI OF AMERICA, LLC

-- Remove rear seat bench, refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- Open the seat belt latch cover -1- and remove it.

-- Free up and disconnect the harness connectors -4- for the seat belt switch.

-- Remove the nut -3- and the bolt.

-- Remove the seat belt latch -2-.
