Front Three-Point Seat Belt, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all pyrotechnic components safety precautions, refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components, refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Disconnect the battery Ground (GND) cable with the ignition turned on, refer to BATTERY, DISCONNECTING AND CONNECTING (A3 / A3 CABRIOLET) .

-- Remove the front belt anchor, refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the side trim panel, refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

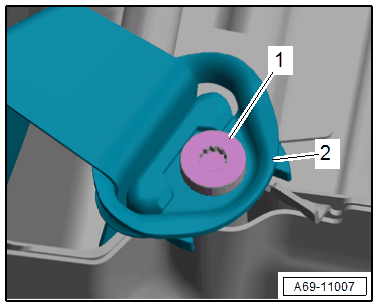

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat belt relay -2- and seat belt.

Vehicles without an Electric Seat Belt Tensioner:

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Release the connector lock with a small screw driver -arrow-, and remove the connector for the seat belt tensioner igniter 1 -1-.

-- Remove the bolt -3- and the automatic belt retractor -2- from the mount.

Vehicles with an Electric Seat Belt Tensioner:

Courtesy of AUDI OF AMERICA, LLC

WARNING:

-- Pull the connector lock -1- out and push it down, then disconnect the connector from the seat belt igniter.

-- Disconnect the connector -3- from the seat belt tensioner control module.

-- Free up the wire.

-- Remove the bolts -2 and 5- and then remove the automatic belt retractor -4- from the mount.
