Front Seat Belt Guide, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

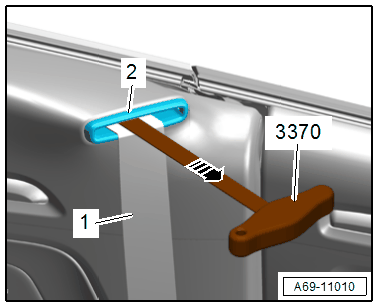

GWWA69-11010Courtesy of AUDI OF AMERICA, LLC

-- Remove the front belt anchor, refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Unclip the front seat belt guide -2- with the Backrest Panel Tool :3370  from the side trim panel -arrow-.

-- Remove the seat belt guide from the side trim panel, and guide out the seat belt webbing -1- with belt tongue and remove.
