Component Location Overview - Seat Belts And Attaching Points

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

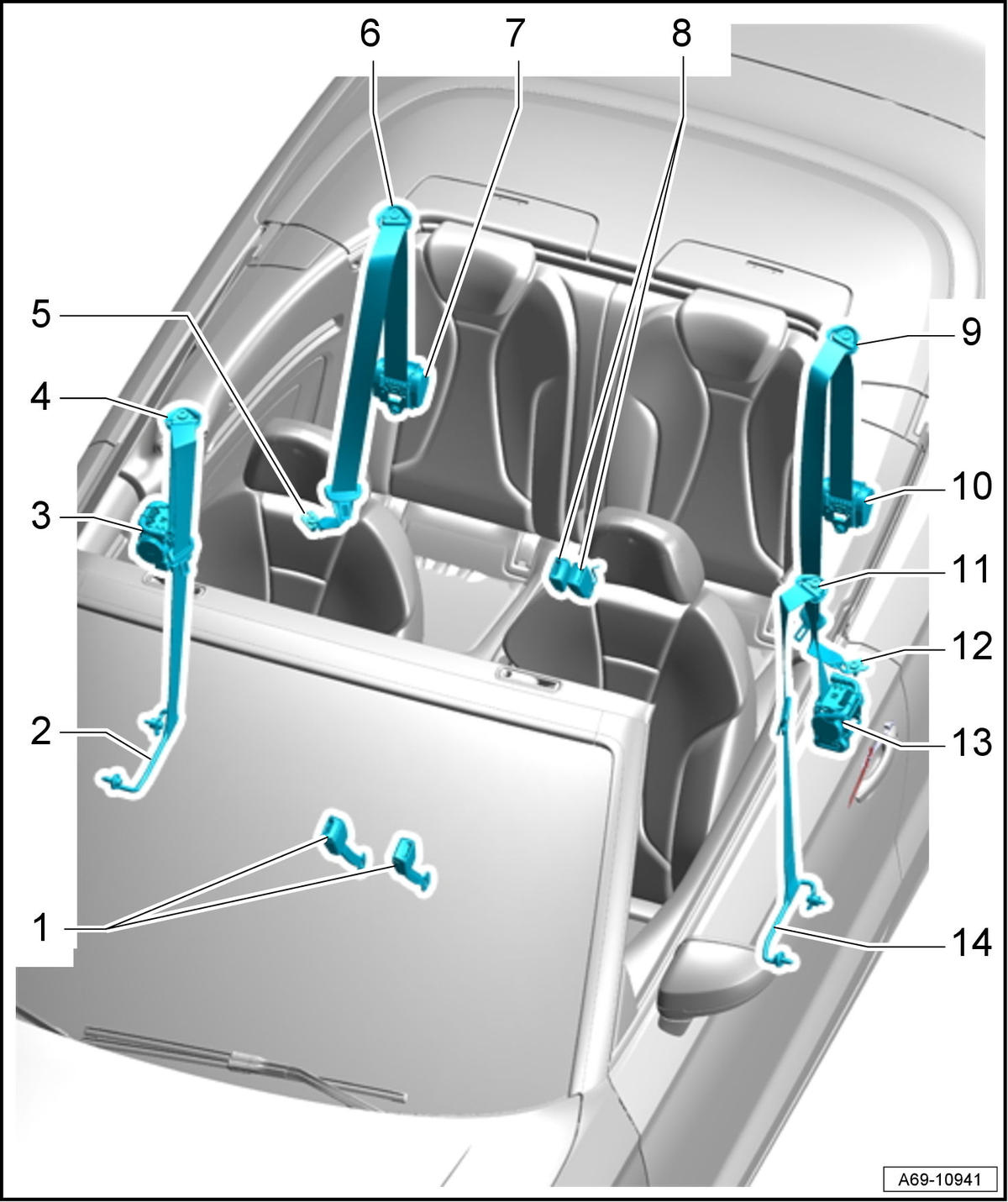

GWWA69-10941Courtesy of AUDI OF AMERICA, LLC
  1. Front Seat Belt Latch
  2. Front Belt End Fitting
  3. Automatic Belt Retractor
    • For the front three-point seat belt
    • With Front Passenger Seat Belt Tensioner Igniter 1 -N154- and Right Front Seat Belt Tensioner Control Module -J855-
    • Overview, refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
  4. Front Seat Belt Guide
  5. Rear Belt Anchor
  6. Rear Seat Belt Guide
  7. Automatic Belt Retractor
  8. Rear Seat Belt Latch
  9. Rear Seat Belt Guide
  10. Automatic Belt Retractor
  11. Front Seat Belt Guide
  12. Rear Belt Anchor
  13. Automatic Belt Retractor
    • For the front three-point seat belt
    • With Driver Seat Belt Tensioner Igniter 1 -N153- and Left Front Seat Belt Tensioner Control Module -J854-
    • Overview, refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
  14. Front Belt End Fitting
