Rollover Protection, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Follow the safety precautions for the rollover protection, refer to SAFETY PRECAUTIONS FOR ROLLOVER PROTECTION .

-- Open convertible top.

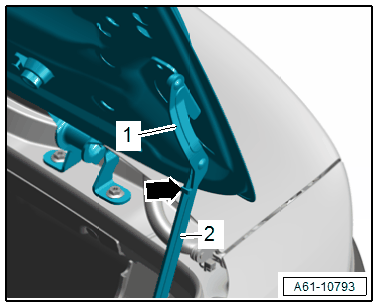

-- Secure the convertible top compartment cover in the "open" position against unintentional closing, to do this the hinge must be pushed in the uppermost deviation point until stop -1- on the brace -2- -arrow-.

-- Disconnect the battery Ground (GND) cable with the ignition turned on, refer to BATTERY, DISCONNECTING AND CONNECTING (A3 / A3 CABRIOLET) .

-- Remove the rear seat backrest, refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the side trim panel, refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the side rear panel trim panel, refer to SIDE REAR PANEL TRIM PANEL, REMOVING AND INSTALLING .

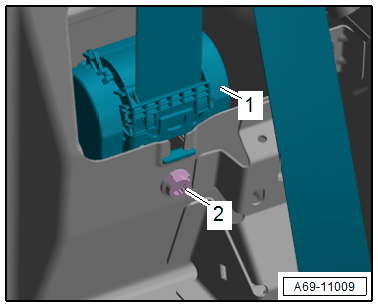

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the three-point seat belt -1- upward from the mount and set aside.

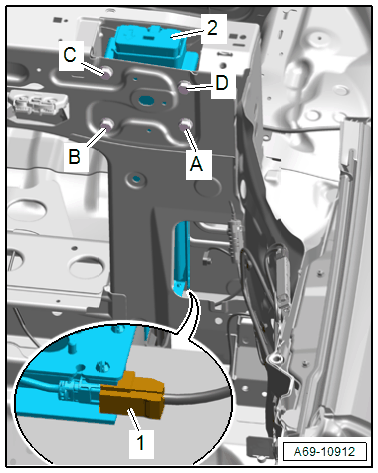

-- Disconnect the connector -1- to do this remove the connector lock and press down.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Loosen only those bolts shown in the illustration.

-- Remove the bolts -A through D-.

-- Remove the rollover protection -2- upward from the vehicle.
