Component Location Overview - Airbag Crash Sensors

WARNING: This page is about a different car, the 2017 Audi A3, 2016 Audi A3, and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

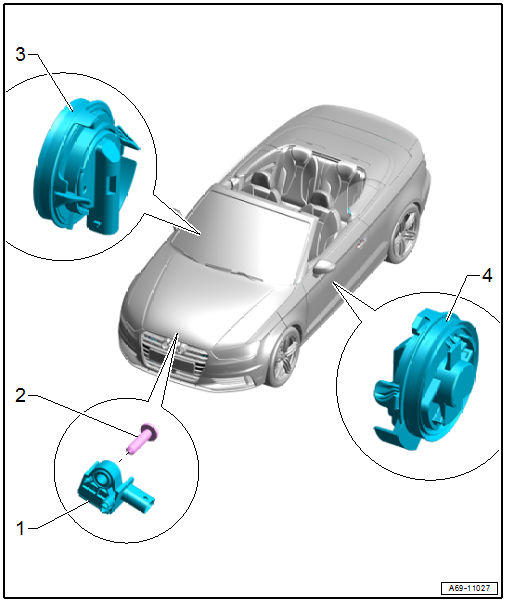

Fig 1: Locating Airbag Crash Sensors (Cabriolet)

Courtesy of AUDI OF AMERICA, LLC

Driver Front Airbag Crash Sensor -G283-
- Installation location: in the vehicle center on the lock carrier
- Removing and installing, refer to DRIVER FRONT AIRBAG CRASH SENSOR -G283-, REMOVING AND INSTALLING .
Bolt
- 9 Nm
Front Passenger Side Airbag Crash Sensor -G180-
- Component location: inside the door
- For the safety precautions for working with front side airbag crash sensors (pressure sensors), refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing, refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
Driver Side Airbag Crash Sensor -G179-
- Component location: inside the door
- For the safety precautions for working with front side airbag crash sensors (pressure sensors), refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Removing and installing, refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
