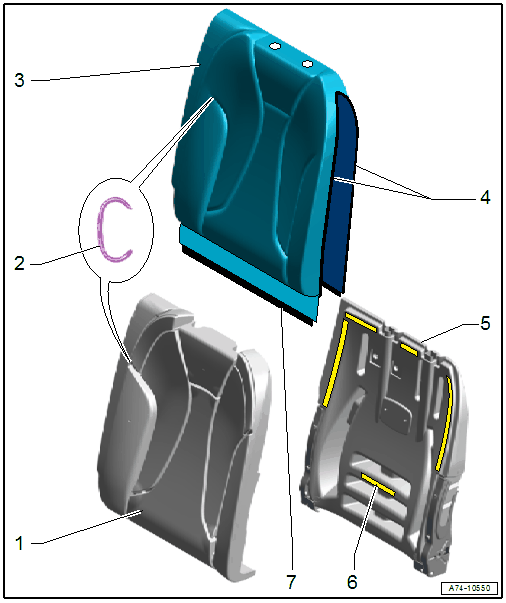

Overview - Rear Seat Backrest Cover And Cushion
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2017 Audi A3 Quattro, 2017 Audi A3, 2016 Audi A3 Quattro, 2016 Audi A3, and 2015 Audi A3 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Cushion
- Is additionally secured with two-sided adhesive strip on the backrest shell
- Covers and cushions, removing and installing, refer to COVERS AND CUSHIONS, REMOVING AND INSTALLING .
- Cover and cushion, separating, refer to SEAT PAN COVER AND CUSHION, SEAT BACKREST .
- Allocation, refer to the Parts information.
- Cushion Clip
- For securing cover to upholstery
- Replace after removing
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
- Cover
Vehicles with:
- Fabric
- Leather
- Covers and cushions, removing and installing, refer to COVERS AND CUSHIONS, REMOVING AND INSTALLING .
- Cover and cushion, separating, refer to SEAT PAN COVER AND CUSHION, SEAT BACKREST .
- Allocation, refer to the Parts information.
- Make sure there are no folds after installing
- Zip Fastener
- Sewn into cover
- Quantity: 2
- Backrest Shell
- Allocation, refer to the Parts information.
- Adhesive Strips
- Allocation, refer to the Parts information.
- Clamping Strip
- Sewn into cover
