Overview - Charge Air System
WARNING: This page is about a different car, the 2016 Audi Q3 Quattro, 2016 Audi Q3, 2015 Audi Q3 Quattro, and 2015 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before testing or performing a repair, check all air guide pipes and hoses and all vacuum lines for leaks and secure seating.
Follow all the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .

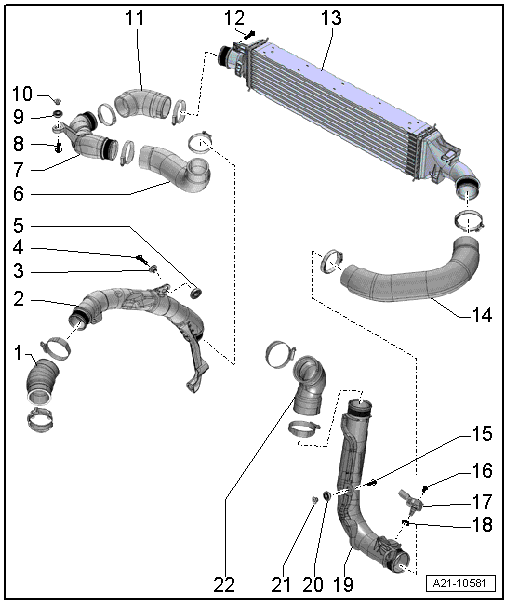

- Air Guide Hose
- Left Rear Air Guide Pipe
- Spacer Sleeve
- Bolt
- 9 Nm
- Grommet
- Replace if damaged
- Air Guide Hose
- Left Front Air Guide Pipe
- Bolt
- 9 Nm
- Grommet
- Replace if damaged
- Spacer Sleeve
- Air Guide Hose
- Bolt
- 7 Nm
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Air Guide Hose
- Bolt
- 9 Nm
- Bolt
- 5 Nm
- Charge Air Pressure Sensor -G31-
- Removing and installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- O-Ring
- Always replace
- Right Air Guide Pipe
- Grommet
- Replace if damaged
- Spacer Sleeve
- Air Guide Hose
