Overview - Luggage Compartment Side Trim Panel

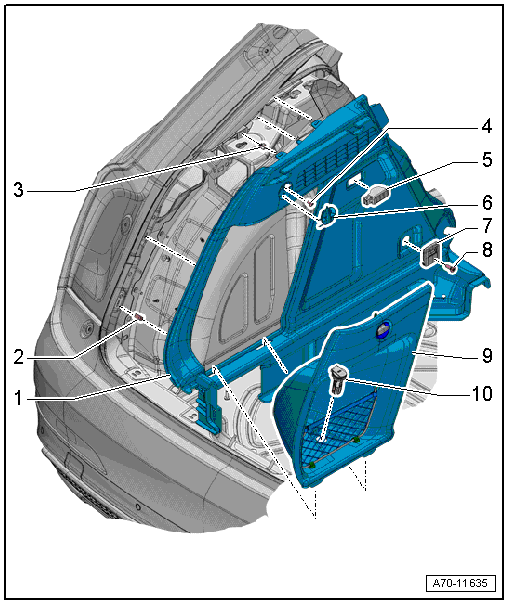

Fig 1: Luggage Compartment Side Trim Panel Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Luggage Compartment Side Trim Panel
   • Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
   • Press on until it engages audibly
   • Stretch the rear lid seal lip
2. Clip
   • Quantity: 3
   • Insert in the trim panel
   • Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280  . To install, insert into the trim panel.
   • Replace damaged or deformed clips
3. Clip
   • Quantity: 2
   • Insert in the trim panel
   • Remove clips left in the mounting points and use for installation in the trim
   • Replace damaged or deformed clips
4. Bolt
   • 3 Nm
5. Left Luggage Compartment Lamp -W18-
   • Right: Right Luggage Compartment Lamp -W35-
   • Removing and Installing. Refer to Lamps .
6. Coat Hooks
   • Removing and installing. Refer to COAT HOOKS, REMOVING AND INSTALLING .
   • Place in the mount and turn clockwise until stop.
7. Tie Down
   • Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
8. Bolt
   • 6 Nm
9. Cover
   • for the luggage compartment side trim
10. Socket -U-
    • Equipment levels
    • Removing and installing. Refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
