Overview - Lower Rear Lid Trim Panel

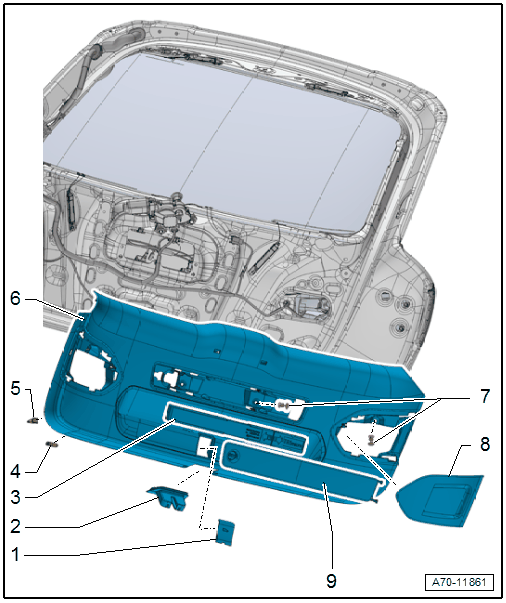

Fig 1: Lower Rear Lid Trim Panel Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • For the emergency release
   • Removing and installing. Refer to EMERGENCY RELEASE COVER, REMOVING AND INSTALLING .
   • Clip into the rear lid trim panel
2. Trim Panel
   • For rear lid lock
   • Removing and installing. Refer to REAR LID LOCK TRIM PANEL, REMOVING AND INSTALLING .
   • Press on until it engages audibly
3. Warning Triangle
4. Rubber Buffer
   • Quantity: 6
   • Insert in the trim panel
5. Clip
   • Quantity: 10
   • Insert in the trim panel
   • Remove any remaining rear lid clips using Omega Clip Tool:T40280  and use them to install the trim.
   • Replace damaged or deformed clips
6. Lower Rear Lid Trim Panel
   • Removing and installing. Refer to Lower Rear Lid Trim Panel, Removing And Installing .
   • Press on until it engages audibly
7. Expanding Clip
   • Quantity: 4
8. Cover
   • For tail lamps
   • Removing and installing. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .
   • Clip into the rear lid trim panel
9. Cover
   • For the warning triangle
   • Removing and installing. Refer to EMERGENCY TRIANGLE COVER, REMOVING AND INSTALLING .
   • Engage in the rear lid trim panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Rear Lid Closing Button - E574-. Refer to Controls .

1. Rear Lid Closing Button -E574-
