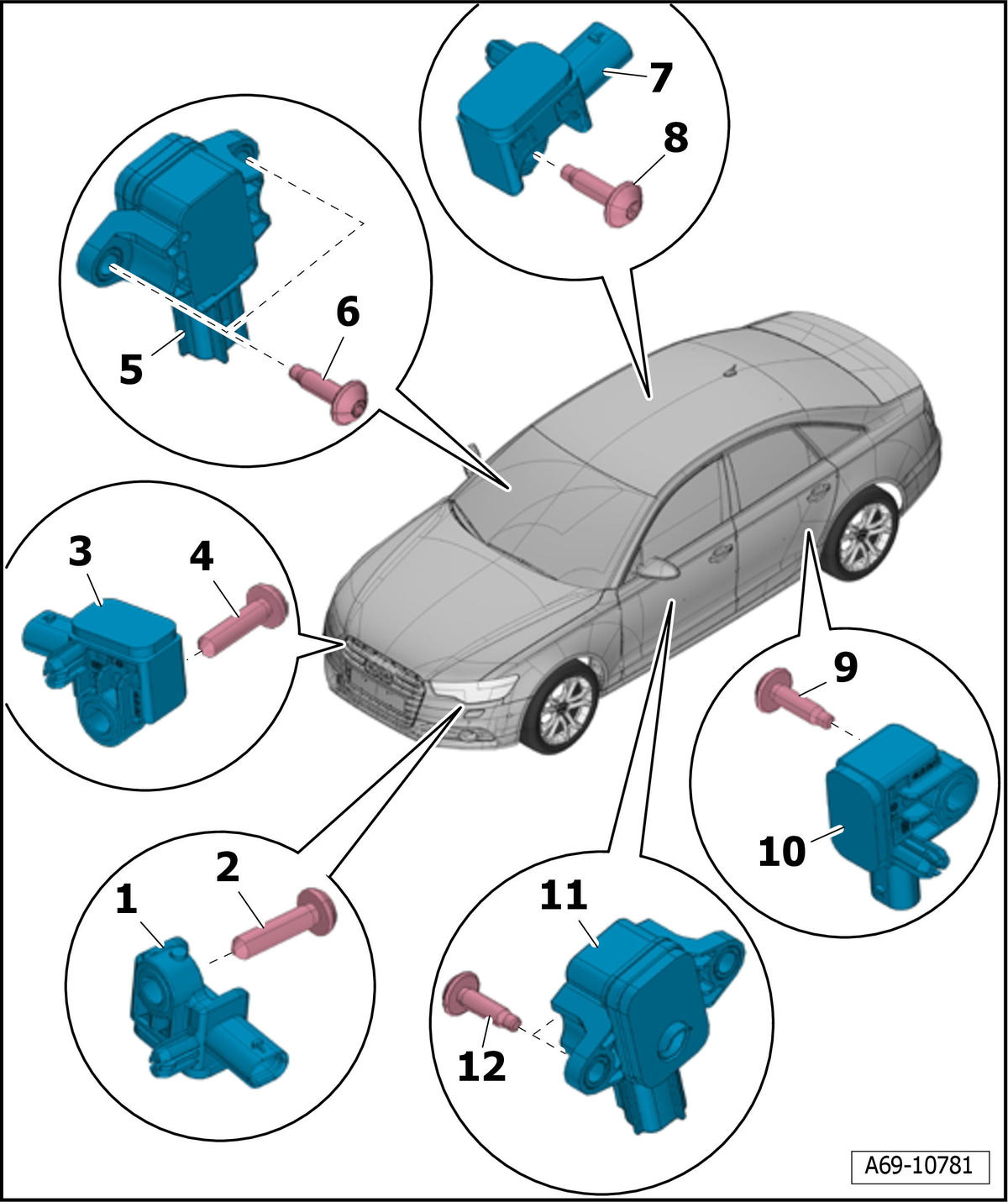

Component Location Overview - Airbag Crash Sensors

NOTE:

The crash sensors in the Sedan are illustrated.

Courtesy of AUDI OF AMERICA, LLC

1. Driver Front Airbag Crash Sensor -G283-
   • Installation location: on the headlamp housing bracket
   • Removing and installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING .
2. Bolt
   • 9 Nm
3. Passenger Side Front Airbag Crash Sensor -G284-
   • Installation location: on the headlamp housing bracket
   • Removing and installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING .
4. Bolt
   • 9 Nm
5. Front Passenger Side Airbag Crash Sensor -G180-
   • Component location: inside the door
   • Removing and installing. Refer to Driver Side Airbag Crash Sensor -G179- /Front Passenger Side Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
   • For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
6. Bolt
   • 5 Nm
   • Quantity: 2
7. Passenger Side Rear Side Airbag Crash Sensor -G257-
   • Installed location: on the inside of the wheel housing behind the sill panel strip.
   • Removing and installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256- /Passenger Side Rear Side Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
8. Bolt
   • 9 Nm
9. Bolt
   • 9 Nm
10. Driver Side Rear Side Airbag Crash Sensor -G256-
    • Installed location: on the inside of the wheel housing behind the sill panel strip.
    • Removing and installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256- /Passenger Side Rear Side Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
11. Driver Side Airbag Crash Sensor -G179-
    • Component location: inside the door
    • Removing and installing. Refer to Driver Side Airbag Crash Sensor -G179- /Front Passenger Side Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
    • For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
12. Bolt
    • 5 Nm
    • Quantity: 2
