Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT
Refer to REMOVAL [08/2013 - ]
REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 3
REMOVE HEADLIGHT LEVELING ECU ASSEMBLY (w/ Automatic Headlight Beam Level Control System) . Refer to REMOVAL [08/2013 - ] - Step 8
REMOVE STOP LIGHT SWITCH ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 2
REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
REMOVE PUSH ROD PIN
1. Remove the clip and push rod pin.

  Fig 1: Identifying Clip And Push Rod Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the brake master cylinder push rod clevis from the brake pedal support assembly.
REMOVE BRAKE PEDAL RETURN SPRING
1. Remove the brake pedal return spring from the brake pedal support assembly.

  Fig 2: Identifying Brake Pedal Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
1. Disengage the clamp.

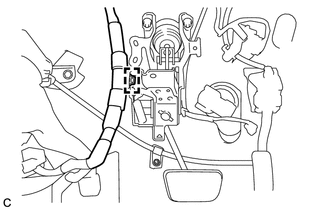

  Fig 3: Identifying Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 3 clamps and separate the wire harness from the brake pedal support assembly.

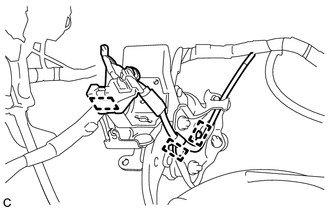

  Fig 4: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 nuts and brake pedal support assembly.

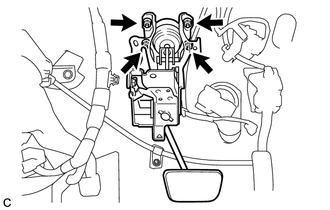

  Fig 5: Identifying Brake Pedal Support Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
