Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the windshield glass of a vehicle equipped with a lane departure warning camera, make sure to use a Lexus genuine part. The lane departure warning camera may not be able to be installed due to a missing bracket or the lane departure alert system may not operate properly due to a difference in the transmissivity or black ceramic border.

REMOVE LANE DEPARTURE WARNING CAMERA COVER

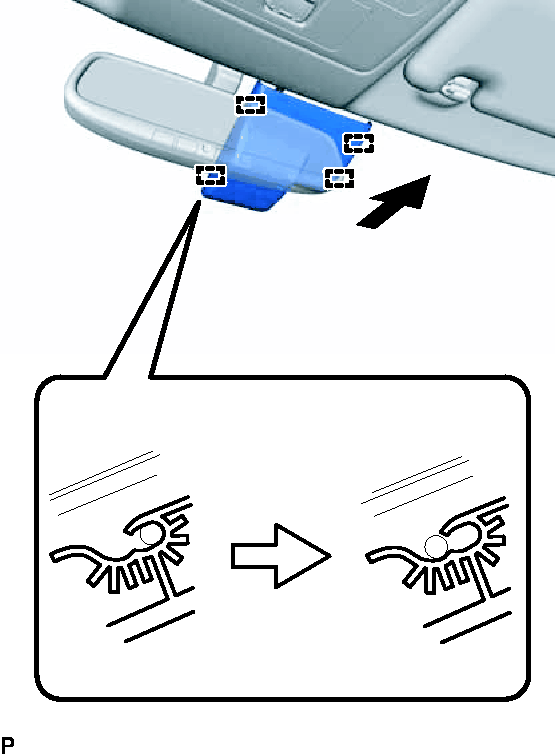

1. Pull the lane departure warning camera cover in the direction indicated by the arrow to disengage the 4 guides and remove the lane departure warning camera cover as shown in the illustration.

  Fig 1: Identifying Lane Departure Warning Camera Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LANE DEPARTURE WARNING CAMERA
1. Disconnect the connector.

  Fig 2: Identifying Lane Departure Warning Camera
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

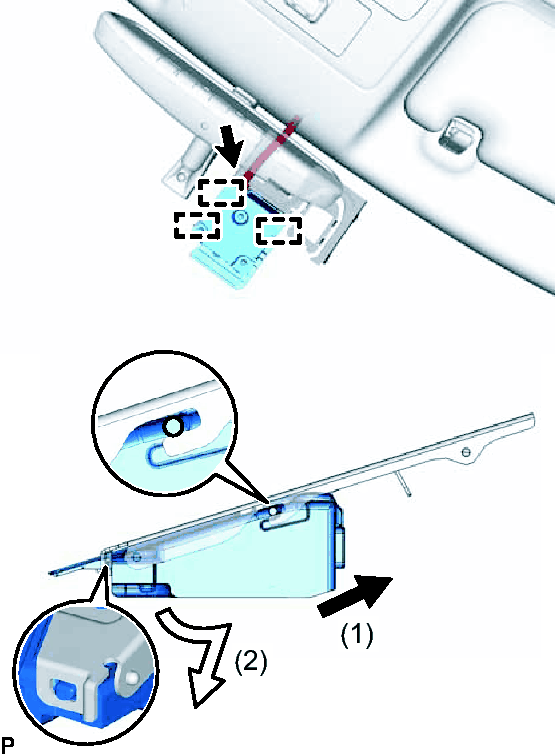

2. Disengage the 3 guides and remove the lane departure warning camera as shown in the illustration.
  NOTE:
  - Do not pull the harness forcibly when disconnecting the connector.
  - If the lane departure warning camera bracket is deformed or damaged, replace it together with the windshield glass.
  - If the lane departure warning camera is dropped, replace it with a new one.
