Section 83 (Power Mirror Control (W/ Memory) (Diagnostics & Symptom Tests))
>>
POWER MIRROR CONTROL SYSTEM (w/ Memory)
>>
Parts Location [08/2013 - ]
>>
Illustration
Parts Location [08/2013 - ]: Illustration
WARNING:
This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

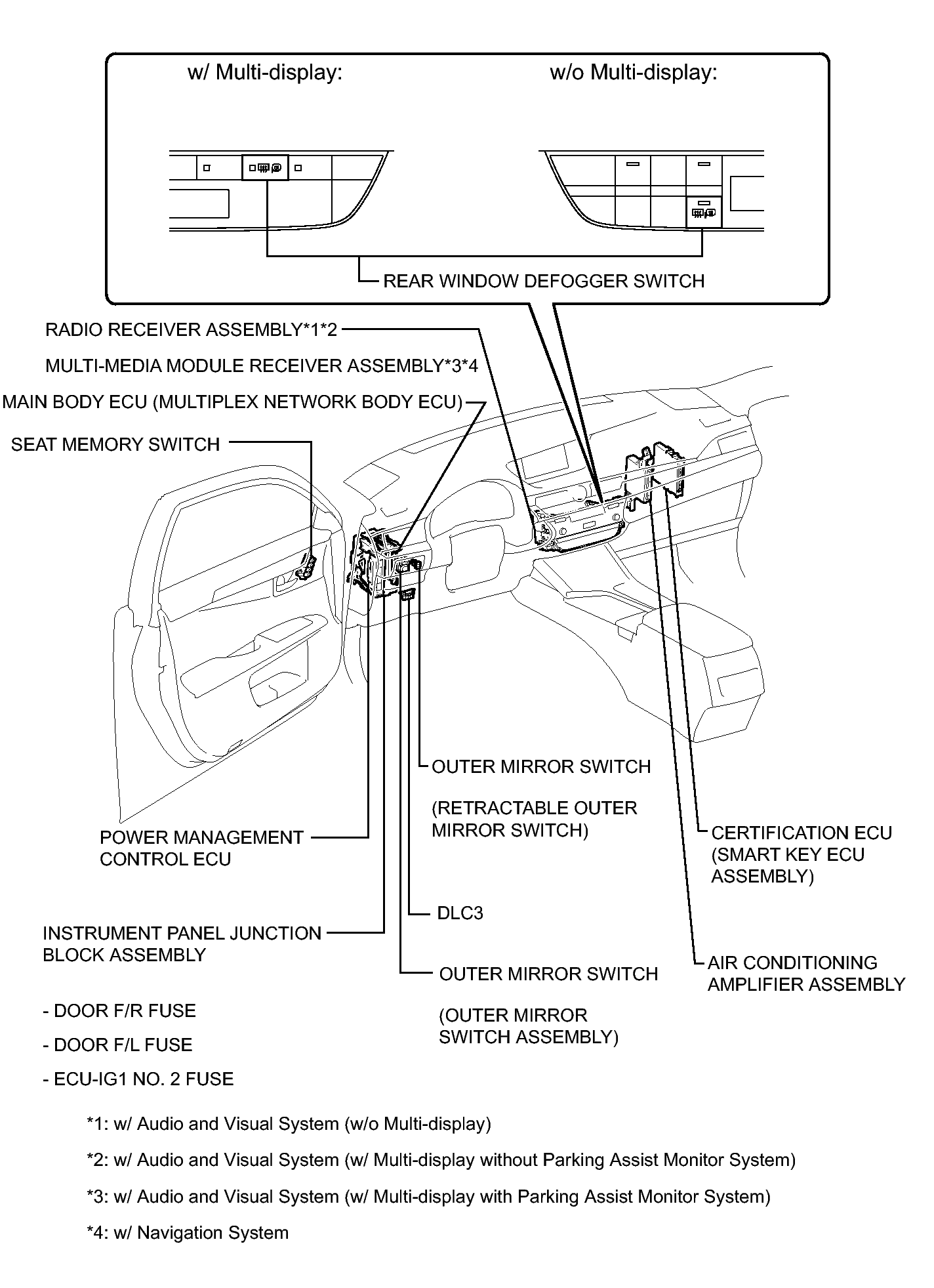

Fig 1: Identifying Power Mirror Control System Component Location (W/ Memory) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

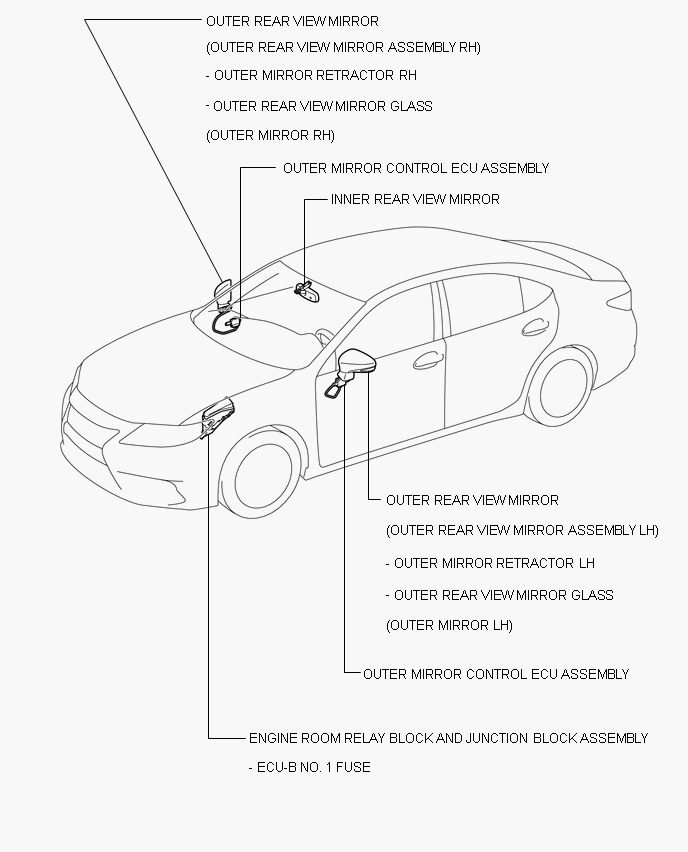

Fig 1: Identifying Power Mirror Control System Component Location (W/ Memory) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
