Engine Hood Courtesy Switch Circuit [08/2013 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. According to the display on the Techstream, read the Data List.
   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Hood Courtesy SW	Engine hood courtesy switch/ON or OFF	ON: Engine hood open OFF: Engine hood closed	-

   OK

   The indicator on the Techstream switches between ON and OFF in accordance with the engine hood courtesy switch (hood lock assembly) status.

NG → See step   2

OK → See step   5

1. Remove the main body ECU (multiplex network body ECU). Refer to REMOVAL [08/2013 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION

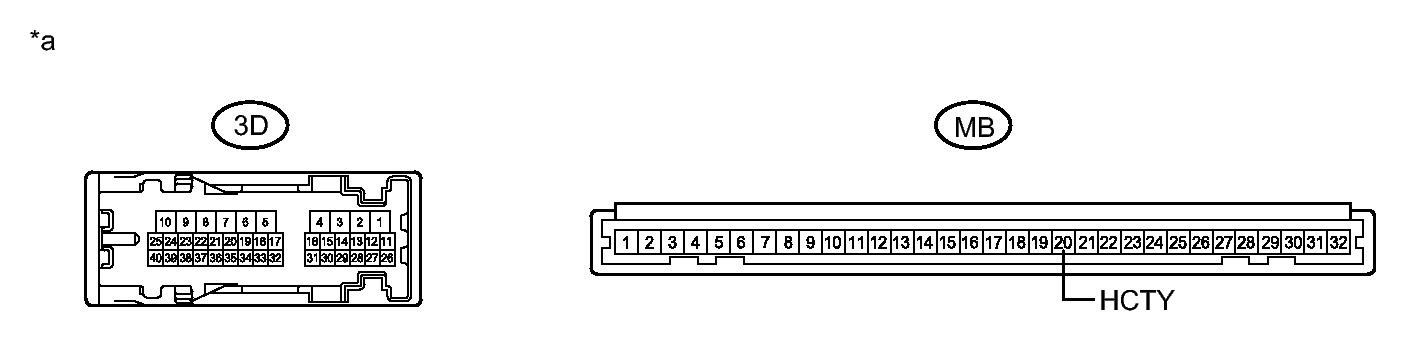

   *a

   Component without harness connected (Instrument Panel Junction Block Assembly)

   -

   -

2. Disconnect the 3D instrument panel junction block assembly.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3D-25 - MB-20 (HCTY)	Always	Below 1 Ω

NG → See step   7

OK: Go to next step

1. Remove the hood lock assembly. Refer to REMOVAL [08/2013 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	Opened	10 kΩ or higher
   1 - 2	Locked	Below 1 Ω

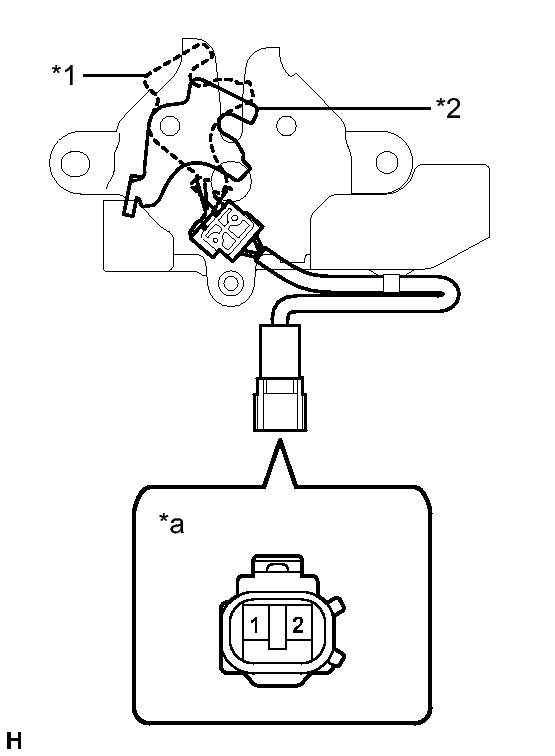

   TEXT IN ILLUSTRATION



   *1	Opened
   *2	Locked
   *a	Component without harness connected (Engine Hood Courtesy Switch (Hood Lock Assembly))

NG → See step   6

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A2-2 (+) - 3D-25	Always	Below 1 Ω
   A2-2 (+) - Body ground	Always	10 kΩ or higher
   A2-1 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
