Installation [08/2013 - ]

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY
   1. Check that the power switch is off.
   2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

   3. Apply 2 new tapes to install the rear No. 2 side rail spacer to the curtain shield airbag assembly as shown in the illustration.

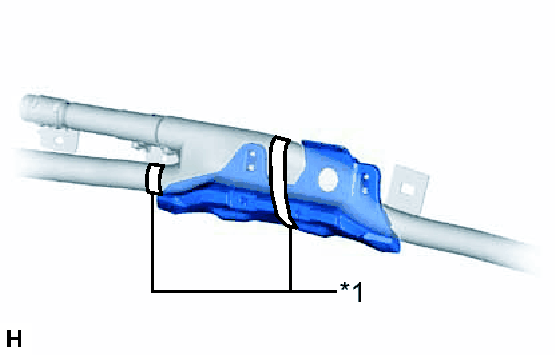

      Fig 1: Identifying Tape

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1

      New Tape

   4. Connect the airbag connector.

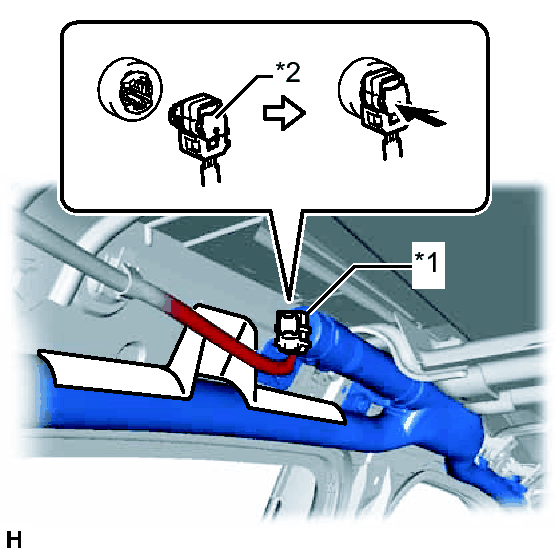

      Fig 2: Identifying Airbag Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Airbag Connector
      *2	Airbag Connector Lock

      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

   5. Push in the airbag connector lock to install the curtain shield airbag connector.
   6. Engage the 2 clamps and 4 hooks to temporarily install the curtain shield airbag assembly.

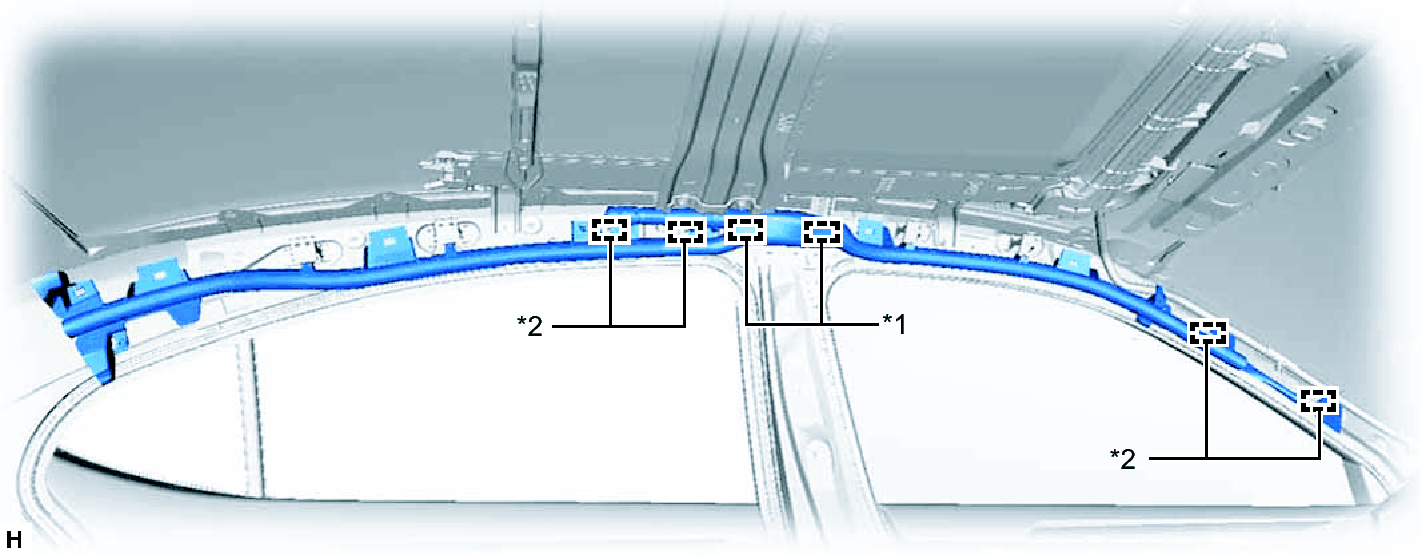

      Fig 3: Identifying Airbag Clamps & Hooks

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1

      Clamp

      *2

      Hook

      NOTE:

      • When installing the curtain shield airbag assembly, have assistants hold it to prevent it from bending.
      • Do not twist the curtain shield airbag assembly when installing it.
   7. Engage the 2 clamps and clip.

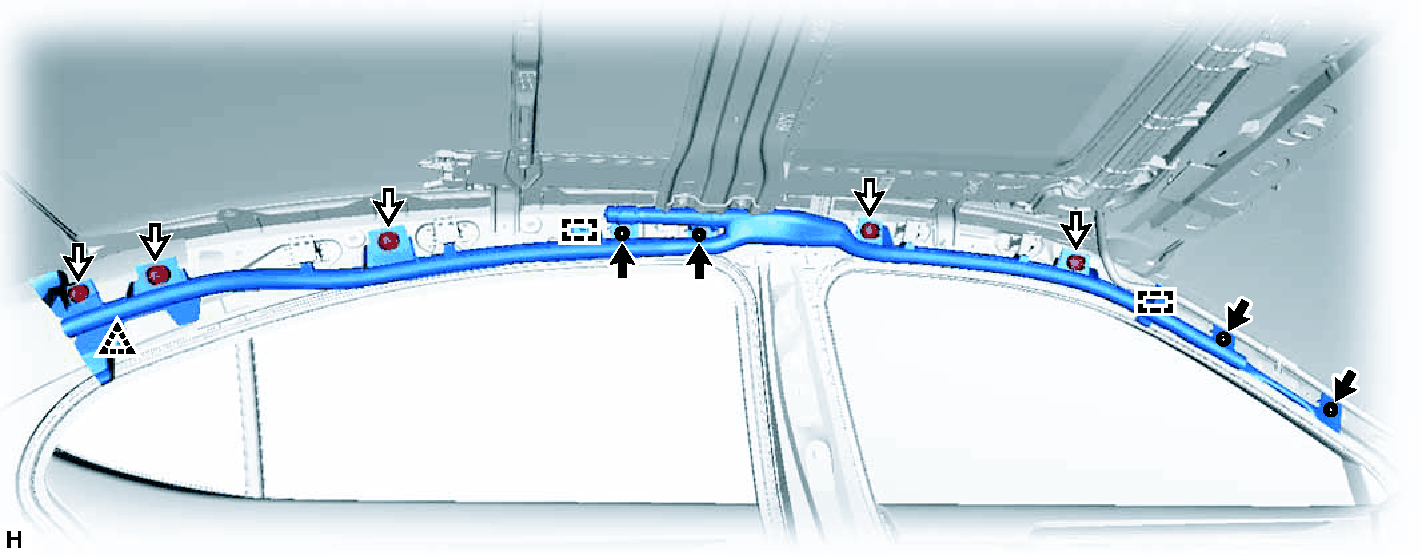

      Fig 4: Identifying Curtain Shield Airbag Assembly Fasteners

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. Install 5 new clips.
      TEXT IN ILLUSTRATION



      New Bolt

      New Clip

   9. Install 4 new bolts.

      Torque: 11 N*m (110 kgf*cm, 8 ft.*lbf)

   10. Push in 5 new pins to each clip.

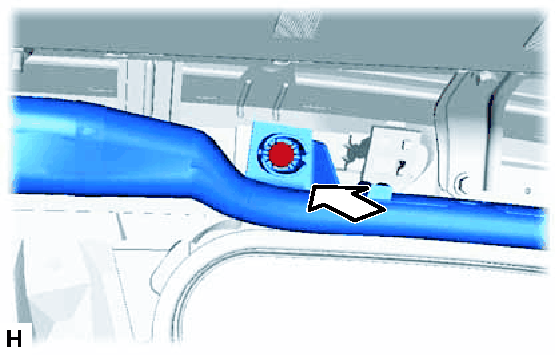

       Fig 5: Identifying New Clip Pins

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE:

       Make sure that the pins of the clips are pushed in firmly.

2. INSTALL ROOF HEADLINING ASSEMBLY

   Refer to INSTALLATION [08/2013 - ] - Step 5

3. PERFORM DIAGNOSTIC SYSTEM CHECK

   Refer to DTC CHECK / CLEAR [08/2013 - ]
