Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SERVICE PLUG GRIP
WARNING:
Wear insulated gloves.

NOTE:
Before connecting the service plug, check that no parts and tools remain and that the high voltage terminals and connectors are connected securely.
1. Wear insulated gloves and install the service plug grip in the order shown in the illustration.

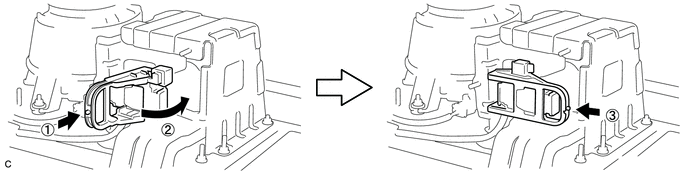

  Fig 1: Rotating Service Plug Grip Handle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Rotate the lever of the service plug grip 90° toward the battery and slide it in the direction shown by the arrow until a click sound is heard.
INSTALL NO. 8 HYBRID VEHICLE BATTERY SHIELD PANEL
1. Install the No. 8 hybrid vehicle battery shield panel to the HV battery with the 2 nuts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
INSTALL LUGGAGE COMPARTMENT FRONT TRIM COVER . Refer to INSTALLATION [08/2013 - ] - Step 15
INSTALL LUGGAGE COMPARTMENT FLOOR MAT . Refer to INSTALLATION [08/2013 - ] - Step 20
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .
INSTALL LUGGAGE TRIM SERVICE HOLE COVER . Refer to INSTALLATION [08/2013 - ] - Step 3
